Rohde & Schwarz ZC500
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 500 MHz |
| Impedance Measurement Range | 1 mΩ to 10 MΩ |
| Interface Compatibility | Compatible with Rohde & Schwarz LCR meters (e.g., R&S LCX series) |
| Test Fixture Type | High-frequency impedance test fixture |
| Connector Type | BNC / Coaxial connection interface |
| Component Under Test (CUT) Size | Supports SMD and leaded components |
| Calibration Support | Open, short, and load calibration supported |
| Measurement Parameters | Z, Y, R, X, G, B, L, C, D, Q, θ, |Z| |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | Compact fixture design for bench-top use |
| Model | ZC500 |
|---|

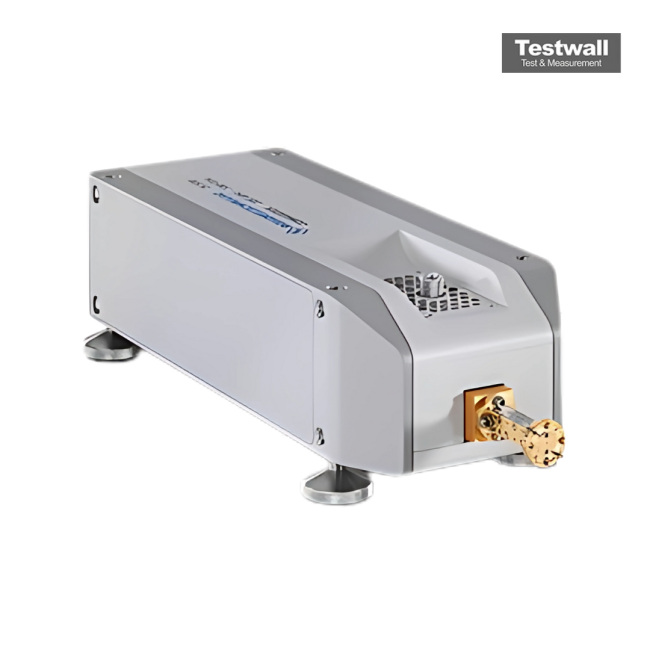

The Rohde and Schwarz ZC500 extends measurement capabilities up to 500 GHz, providing a dynamic range of approximately 100 dB. It includes a mechanical attenuator for adaptable output control and ensures stable trace quality. Engineered for precise high-frequency device characterization, it integrates automatically with compatible analyzers and supports pulsed and multiport test configurations.
Ideal for advanced research and detailed measurements, the ZC500 facilitates flexible and high-performance RF testing across a broad frequency spectrum, with high stability and usability.
Testwall can supply the used Rohde and Schwarz ZC500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZC500.
