Rohde & Schwarz ZNA26
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 26.5 GHz |
| Number of Ports | 2 or 4 ports |
| Dynamic Range | Up to 145 dB |
| Output Power | -60 dBm to +13 dBm |
| Trace Noise | 0.001 dB RMS (at 10 Hz IF bandwidth) |
| Measurement Speed | Up to 1.2 million points per second |
| IF Bandwidth | 1 Hz to 10 MHz |
| Connector Type | 3.5 mm (f) / 2.92 mm compatible |
| Display | 12.1-inch XGA touchscreen display |
| Operating System | Windows 10 embedded |
Rohde & Schwarz ZNA26 Options:
- ZNA26 - ZNA26-B16 - Direct source and receiver access with start frequency down to 100 kHz; supports reversed coupler configuration
- ZNA26 - ZNA26-B3 - R&S ZNA26 four-port model with up to four internal sources
- ZNA26 - ZNA-B5 - Second internal LO source for simultaneous measurement of two different frequencies
- ZNA26 - ZNA-B26 - Direct IF access, switchable to input or output, with 2 GHz analog IF bandwidth
- ZNA26 - ZNA-B91 - Enhanced trigger and control functions (three additional trigger inputs, four trigger outputs, four pulse control I/O ports, ready for trigger, busy, RF interlock control)
- ZNA26 - ZNA26-B21 - Source step attenuator port 1, 0 dB to 70 dB in 10 dB steps
- ZNA26 - ZNA26-B22 - Source step attenuator port 2, 0 dB to 70 dB in 10 dB steps
- ZNA26 - ZNA26-B23 - Source step attenuator port 3, 0 dB to 70 dB in 10 dB steps
- ZNA26 - ZNA26-B24 - Source step attenuator port 4, 0 dB to 70 dB in 10 dB steps
- ZNA26 - ZNA26-B31 - Receiver step attenuator port 1, 0 dB to 35 dB in 5 dB steps
- ZNA26 - ZNA26-B32 - Receiver step attenuator port 2, 0 dB to 35 dB in 5 dB steps
- ZNA26 - ZNA26-B33 - Receiver step attenuator port 3, 0 dB to 35 dB in 5 dB steps
- ZNA26 - ZNA26-B34 - Receiver step attenuator port 4, 0 dB to 35 dB in 5 dB steps
- ZNA26 - ZNA26-B41 - Internal pulse modulator for port 1
- ZNA26 - ZNA26-B42 - Internal pulse modulator for port 2
- ZNA26 - ZNA26-B43 - Internal pulse modulator for port 3
- ZNA26 - ZNA26-B44 - Internal pulse modulator for port 4
- ZNA26 - ZNA-K1 - Spectrum analysis option with multichannel view, harmonic and spurious search
- ZNA26 - ZNA-K4 - Scalar mixer and arbitrary frequency-converting measurements
- ZNA26 - ZNA-K5 - Vector corrected converter measurements including forward and reverse conversion loss, group delay, AM/AM and AM/PM conversion
- ZNA26 - ZNA-K7 - Pulse profile measurements with 8 ns time resolution and 32 ns minimum pulse width
- ZNA26 - ZNA-K9 - Group delay and relative phase measurements on frequency converters without LO access
- ZNA26 - ZNA-K17 - Point-in-pulse measurements
- ZNA26 - ZN-ZM292 - Calibration mixer for vector corrected converter measurements
| Model | ZNA26 |
|---|

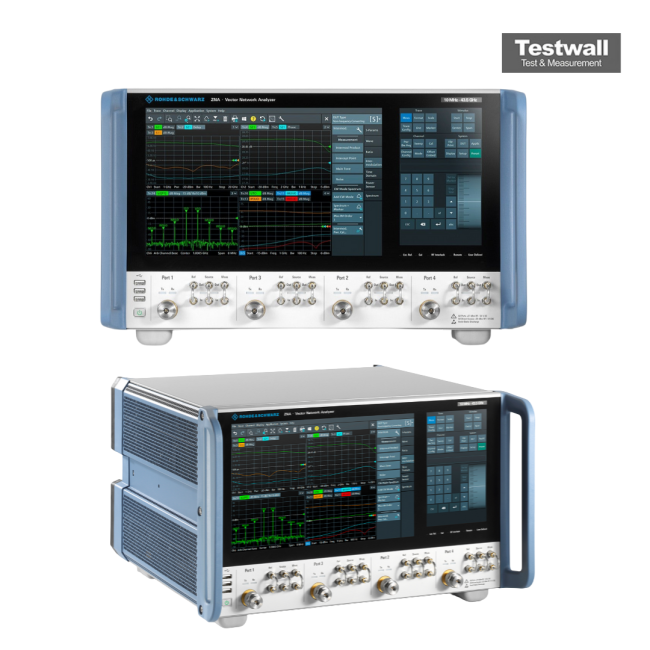

The Rohde and Schwarz ZNA26 is a high-end vector network analyzer covering 10 MHz to 26.5 GHz, with models also reaching up to 43.5 GHz. Available in two- or four-port configurations, it features excellent RF performance, low trace noise, and exceptional stability. It includes up to four internal, phase-coherent signal sources and two internal local oscillators, enabling independent signal frequency control and precise phase measurements. The device also supports pulse modulation and advanced synchronization capabilities.
Designed for both passive and active component testing, the ZNA26 is ideal for R&D and production environments, particularly in aerospace, defense, and satellite applications. It offers intuitive touch-only operation and a DUT-centric interface.
Testwall can supply the used Rohde and Schwarz ZNA26, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZNA26.
