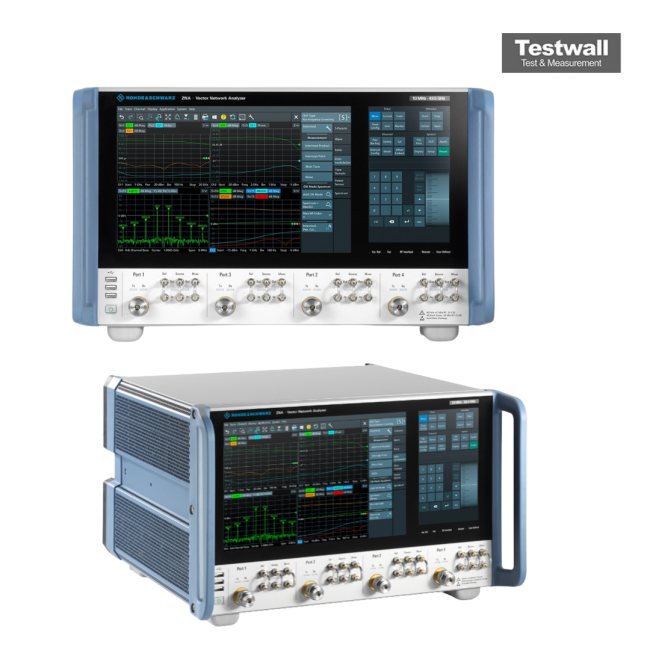

Rohde & Schwarz ZNBT26
Vector Network Analyzer, 100 kHz to 26 GHz
100 kHz to 26.5 GHz Frequency Range
Up to 24 ports Number of Ports
>140 dB Dynamic Range
Up to +10 dBm Output Power
4 ms per port (typical) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 26.5 GHz |
| Number of Ports | Up to 24 ports |
| Dynamic Range | >140 dB |
| Output Power | Up to +10 dBm |
| Measurement Speed | 4 ms per port (typical) |
| Trace Noise | <0.004 dB RMS |
| Port Connector Type | 3.5 mm (f), 50 Ω |
| IF Bandwidth | 1 Hz to 10 MHz |
| Number of Test Ports (Standard) | 8 ports (expandable to 24) |
| Operating System | Windows 10 Embedded |
Rohde & Schwarz ZNBT26 Options:
- ZNBT26 - B108 - Adds Ports 5 to 8, for R&S®ZNBT8
- ZNBT26 - B112 - Adds Ports 9 to 12
- ZNBT26 - B116 - Adds Ports 13 to 16
- ZNBT26 - B120 - Adds Ports 17 to 20
- ZNBT26 - B124 - Adds Ports 21 to 24
- ZNBT26 - B21 - Extended Power Range, Ports 1 to 4
- ZNBT26 - B22 - Extended Power Range, Ports 5 to 8
- ZNBT26 - B23 - Extended Power Range, Ports 9 to 12
- ZNBT26 - B24 - Extended Power Range, Ports 13 to 16
- ZNBT26 - B25 - Extended Power Range, Ports 17 to 20
- ZNBT26 - B26 - Extended Power Range, Ports 21 to 24
- ZNBT26 - B4 - Precision Frequency Reference (OCXO)
- ZNBT26 - B10 - GPIB Interface
- ZNBT26 - B12 - Device Control
- ZNBT26 - B19 - Additional Removable SSD, 64 bit
- ZNBT26 - B81 - DC Inputs
- ZNBT26 - K2 - Time Domain Analysis
- ZNBT26 - K4 - Frequency Conversion
- ZNBT26 - K14 - Intermodulation Measurements
- ZNBT26 - K17 - 10 MHz Receiver Bandwidth
- ZNBT26 - K19 - 1 mHz Frequency Resolution
- ZNBT26 - K20 - Extended Time Domain Analysis
- ZNBT26 - Z14 - Handler I/O (External)
| Model | ZNBT26 |
|---|
The Rohde & Schwarz ZNBT26 is a high-performance 24-port vector network analyzer covering a frequency span of 100 kHz to 26.5 GHz, delivering exceptional testing capability with up to 140 dB dynamic range and ultra-fast 2.5 ms sweep times.
Its fully coherent multi-channel architecture enables simultaneous measurements across 24 ports with advanced calibration options like TRL/LRL and UOSM.
Testwall can supply the used Rohde & Schwarz ZNBT26, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNBT26.
