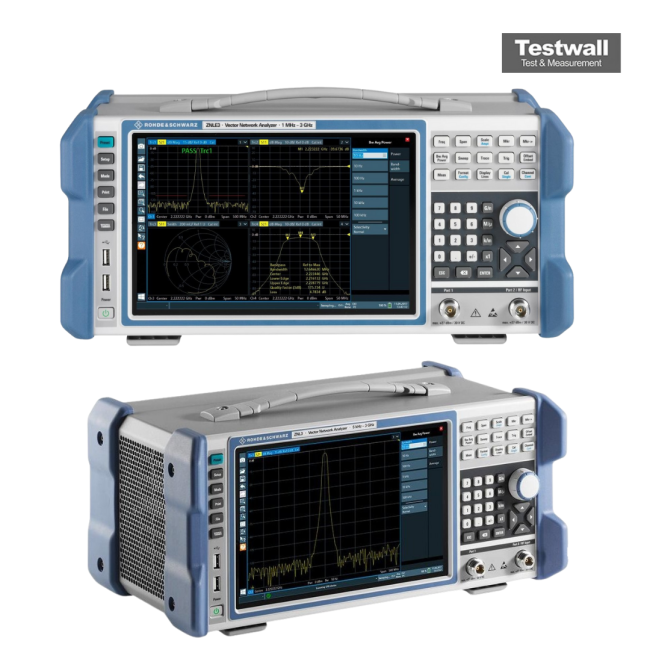

Rohde & Schwarz ZNLE3 Vector Network Analyzer - 1 MHz to 3 GHz
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 120 dB |
| Output Power Range | -40 dBm to +3 dBm |
| Measurement Parameters | S-parameters (S11, S12, S21, S22), impedance, admittance, and more |
| Trace Noise | 0.003 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 500 kHz |
| Display | 10.1-inch WXGA touchscreen display (1366 x 768 pixels) |
| Connectivity & Interfaces | USB, LAN (Ethernet), HDMI |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
Rohde & Schwarz ZNLE3 Vector Network Analyzer - 1 MHz to 3 GHz Options:
- ZNLE3 - R&S®FPL1-B10 - GPIB Interface
| Model | ZNLE3 |
|---|
The Rohde & Schwarz ZNLE3 Vector Network Analyzer offers two-port bidirectional S-parameter measurements (S11, S21, S12, S22) on passive components from 1 MHz to 3 GHz. Featuring a wide dynamic range up to 120 dB, it delivers fast readings with bandwidths from 1 Hz to 500 kHz, and 401-point measurement in just 8.7 ms. It is compact (24 cm depth, 6 kg), standalone with a 10.1" WXGA multi-touchscreen, and runs on Windows 10.
Its intuitive interface allows quick setup, saving, and loading configurations. Ideal for basic VNA applications with optional GPIB for remote access.
Testwall can supply the used Rohde & Schwarz ZNLE3 Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNLE3 Vector Network Analyzer.
