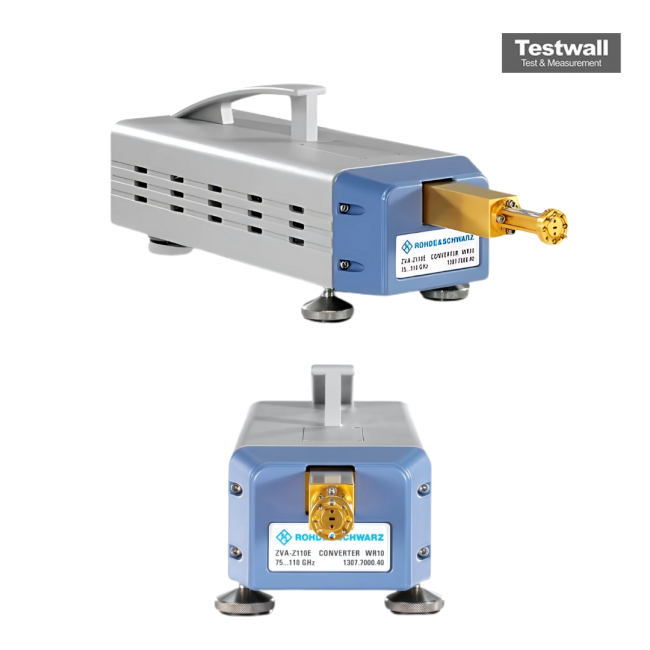

Rohde & Schwarz ZVA-Z110E Millimeter-Wave Converter, 75 GHz to 110 GHz
| Attribute | Value |
|---|---|
| Frequency Range | 75 GHz to 110 GHz |
| Frequency Band | W-Band |
| Compatible Instruments | Rohde & Schwarz ZVA Vector Network Analyzers (e.g., ZVA67, ZVA50) |
| RF Connector Type | WR-10 Waveguide Flange |
| Intermediate Frequency (IF) Connector | 2.4 mm coaxial connector |
| Typical Conversion Loss | Approximately 10 dB to 15 dB across the frequency range |
| Output Power (Typical) | Approximately -5 dBm to 0 dBm |
| Dynamic Range | Up to 90 dB (typical, depending on measurement configuration) |
| Operating Temperature | +5 °C to +40 °C |
| Power Supply | Supplied via ZVA instrument interface (no external power supply required) |
Rohde & Schwarz ZVA-Z110E Millimeter-Wave Converter, 75 GHz to 110 GHz Options:
- ZVA-Z110E - .40 - Converter EL ATT WR10 (Order No. 1307.7000.40)
- ZVA-Z110E - .50 - Converter EL ATT WR10 HP (Order No. 1307.7000.50)
| Model | ZVA-Z110E |
|---|
The Rohde and Schwarz ZVA-Z110E offers variable output power, electronic power control, and wide dynamic range, enabling efficient and precise millimeter-wave measurements from 75 GHz to 110 GHz. It supports pulsed and true differential measurements with convenient handling and automatic parameter settings.
This device is ideal for advanced calibration, power sweeps, and multiport testing, ensuring seamless integration into complex test environments.
Testwall can supply the used Rohde and Schwarz ZVA-Z110E Millimeter Wave Converter, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZVA-Z110E Millimeter Wave Converter.
