Rohde & Schwarz AMIQ04
| Attribute | Value |
|---|---|
| Channels | 2 (I and Q) |
| Sample Rate | 10 Hz to 100 MSa/s |
| Amplitude | 0 to 1 V (per channel) |
| Waveforms | arbitrary |
| Arbitrary Memory | 16 Msample |
| Frequency Range | 25 MHz filter (0.15 dB flatness, typ.) |
| Vertical Resolution | 14 bit |
| Rise/Fall Time | 5 ns (typ.) |
| Timebase Aging | 1 × 10⁻⁵ per year |
| Output Impedance | 50 Ω |
| Output Connector | BNC |
| Interfaces | GPIB, RS-232 |
| Dimensions | 427 × 88 × 450 mm |
| Weight | 8.7 kg |
Rohde & Schwarz AMIQ04 Options:
- AMIQ04 - R&S AMIQ-B1 - BER Measurement Option
- AMIQ04 - R&S AMIQ-B2 - Differential I/Q Outputs
- AMIQ04 - R&S AMIQ-B3 - Digital I/Q Output

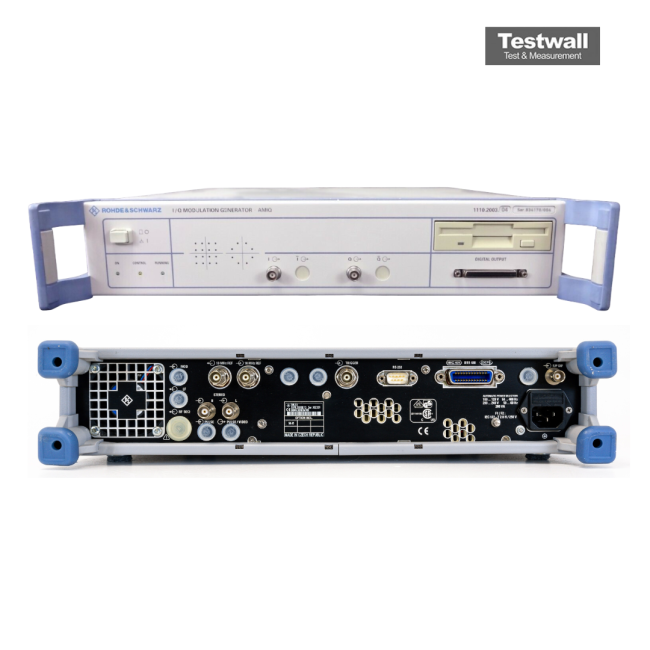

The Rohde & Schwarz AMIQ04 IQ Modulation Generator is a dual-channel unit specifically crafted for advanced I/Q signal creation. It delivers a 14-bit resolution (expandable to 16 bits via digital I/Q output), 100 MHz sample rate, and a massive 16,000,000 sample memory depth. It includes an integrated hard disk and floppy disk drive, with optional BER measurement, digital and differential I/Q outputs.
This generator is ideal for high-fidelity signal processing in development or test environments, offering precise and reliable modulation performance.
Testwall can supply the used Rohde & Schwarz AMIQ04, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz AMIQ04.
Options and configurations
- Vertical Resolution: 14 bit (16 bit digital output, Opt. B3)
