Rohde & Schwarz AMU200A
| Attribute | Value |
|---|---|
| Bandwidth | 40 MHz (I/Q) |
| Vertical Resolution | 16 bit |
| Output Impedance | 50 Ω |
| Timebase Aging | 1 × 10⁻⁶ per year (typ.) |
| Interfaces | GPIB, LAN, USB |
| Channels | 1 or 2 baseband paths, analog I/Q and digital I/Q outputs |
| Sample Rate | 400 MSa/s D/A, ARB clock 400 Hz to 100 MHz |
| Amplitude | 0.02 to 2 V (single-ended), 0.04 to 4 Vpp |
| Arbitrary Memory | 16 Msample (depending on configuration) |
| Fading | 2 channels, up to 20 taps per channel |
| Display | color, 800 × 600 |

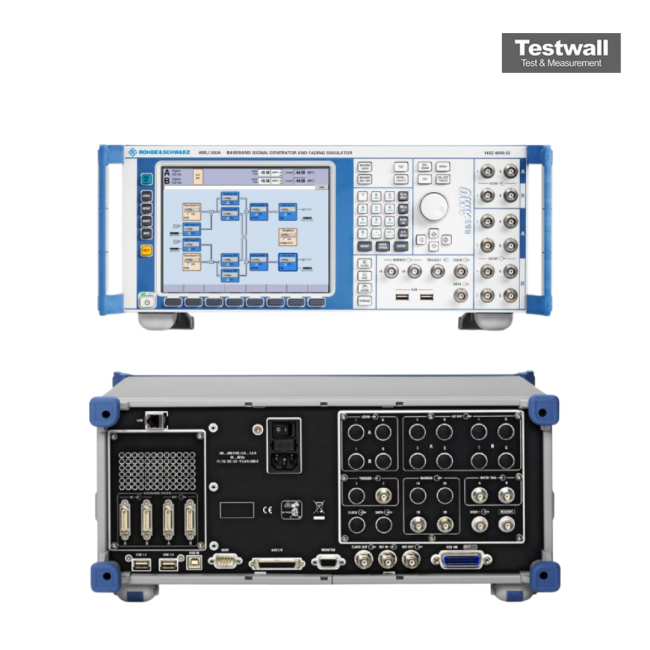

The Rohde & Schwarz AMU200A Baseband Signal Generator and Fading Simulator features up to two complete baseband paths, dual-channel real-time fading simulator, and support for major digital standards such as GSM, 3GPP, LTE, WLAN, and GPS. With arbitrary waveform generation up to 128 Msample, I/Q bandwidth of 40 MHz, and exceptional ACLR performance of +78 dB, this unit offers high signal integrity and flexible configuration for complex testing scenarios.
Ideal for multistandard base station testing, it supports waveform switching, MATLAB® waveform transmission, dynamic fading profiles, and up to 20 taps per channel with 0.01 ns resolution.
Testwall can supply the used Rohde & Schwarz AMU200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz AMU200A.
Options and configurations
- Channels: 1 or 2 baseband paths, analog I/Q and digital I/Q (Opt. B18) outputs
- Amplitude: 0.02 to 2 V (single-ended), 0.04 to 4 Vpp (differential, Opt. B16)
- Arbitrary Memory: 16 Msample (Opt. B11), 64 Msample (Opt. B10), 128 Msample (Opt. B9)
- Fading: 2 channels, up to 20 taps per channel (Opt. B14/B15)
