Rohde & Schwarz APN62
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 1.3 GHz |
| Output Frequency Resolution | 0.1 Hz |
| Output Power Range | -140 dBm to +13 dBm |
| Phase Noise | -130 dBc/Hz at 1 kHz offset (at 100 MHz) |
| Spectral Purity (Harmonics) | < -30 dBc |
| Modulation Capabilities | AM, FM, Phase Modulation (PM), Pulse Modulation |
| Output Impedance | 50 Ohm |
| Reference Frequency | 10 MHz internal/external reference |
| Interface / Connectivity | IEEE 488 (GPIB) remote control interface |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz APN62 Options:
- APN62 - APN-B1 - Reference-frequency input/output for external synchronization and output voltage proportional to frequency or level
| Model | APN62 |
|---|

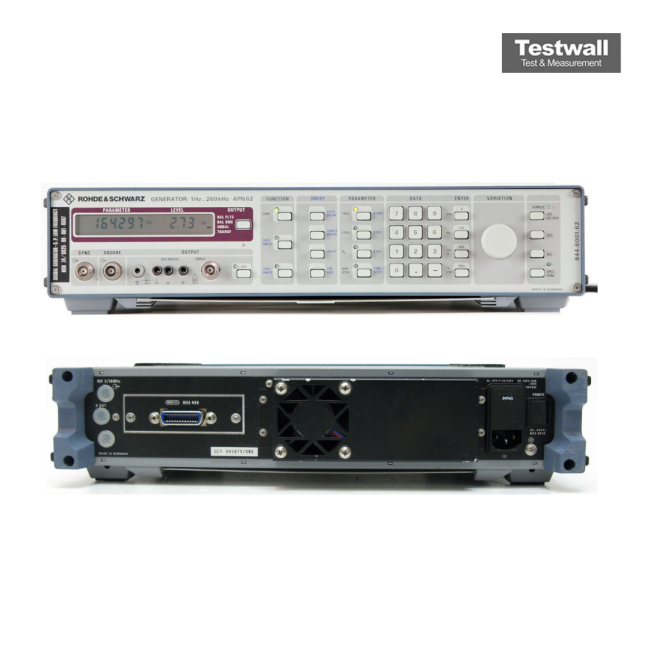

The Rohde & Schwarz APN62 is a versatile 260 kHz audio generator with digital frequency generation, ensuring crystal accuracy, fast phase-continuous adjustments, and low distortion. It offers a frequency range of 1 Hz to 260 kHz, output voltage from 50 µV to 20 V, adjustable source impedance (10–640 Ω), and selectable output configurations including balanced and unbalanced. Additional features include square signal output, high-resolution sweep capabilities, and remote-control interfaces (IEC 625-1, IEEE 488).
Ideal for dynamic ALC testing, amplifier linearity checks, and narrowband DUT analysis, it delivers exceptional signal fidelity with less than 0.05% distortion up to 20 kHz and below 0.1% up to 100 kHz.
Testwall can supply the used Rohde & Schwarz APN62, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz APN62.
