Rohde & Schwarz CMD80
CDMA Mobile Base Station Tester
100 kHz to 2.7 GHz Frequency Range
RF power, frequency, modulation (AM, FM, PM), audio analysis, and protocol testing for mobile radio standards Measurement Functions
GSM, AMPS, TACS, NMT, DECT, CT2, and other analog/digital mobile radio standards Supported Standards
-60 dBm to +43 dBm RF Power Measurement Range
±1 Hz (with internal reference oscillator) Frequency Measurement Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz |
| Measurement Functions | RF power, frequency, modulation (AM, FM, PM), audio analysis, and protocol testing for mobile radio standards |
| Supported Standards | GSM, AMPS, TACS, NMT, DECT, CT2, and other analog/digital mobile radio standards |
| RF Power Measurement Range | -60 dBm to +43 dBm |
| Frequency Measurement Accuracy | ±1 Hz (with internal reference oscillator) |
| Signal Generator Output Level Range | -127 dBm to 0 dBm |
| Audio Frequency Range | 20 Hz to 20 kHz |
| Interface / Connectivity | IEEE 488 (GPIB) interface for remote control and automation |
| Display | Built-in color display for measurement results and system status |
| Power Supply | 100 V to 240 V AC, 50/60 Hz, suitable for worldwide operation |
| Model | CMD80 |
|---|

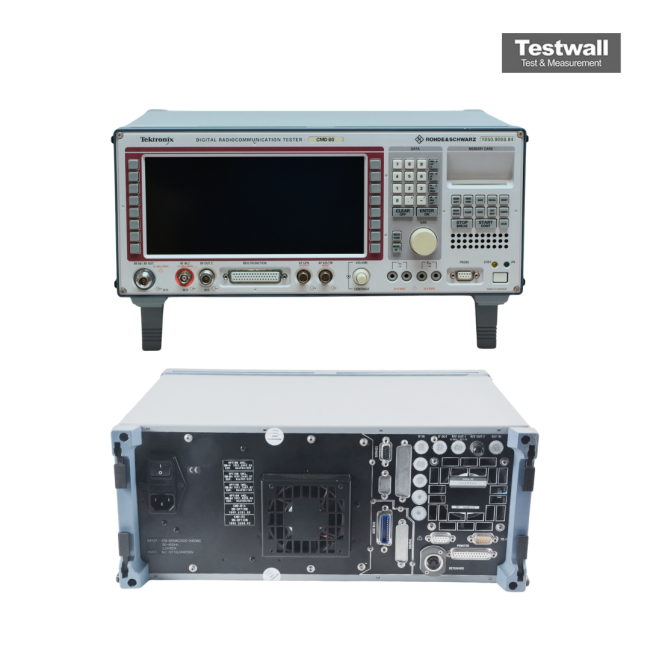

The Rohde & Schwarz CMD80 Digital Radiocommunication Tester combines CDMA, AMPS, Digital AMPS, and TACS testing in one compact unit, offering high-speed and accurate measurements for R&D and production environments.
Its large LCD screen and user-friendly menu system simplify the testing of RF parameters in manual and modular test modes with full signaling support.
Testwall can supply the used Rohde & Schwarz CMD80, fully tested.
