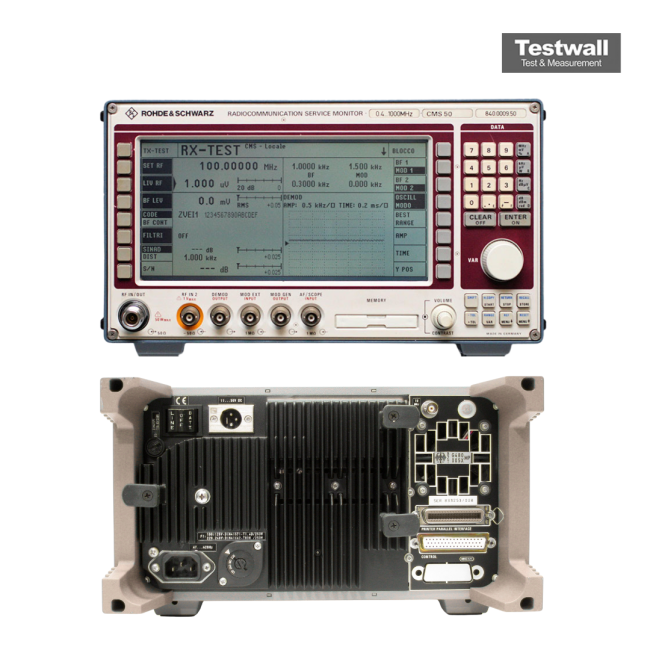

Rohde & Schwarz CMS50
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz |
| Modulation Modes | AM, FM, PM, SSB, DSB, ISB, CW |
| RF Output Level Range | -137 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| RF Connector Type | N-type female (50 Ω) |
| Audio Frequency Range | 20 Hz to 20 kHz |
| Spurious Emissions | < -60 dBc |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C |
| Dimensions (W x H x D) | 425 mm x 177 mm x 450 mm |
Rohde & Schwarz CMS50 Radio Comms Test Set Options:
- CMS50 - B1 - Ocxo Reference
- CMS50 - B2 - Ocxo Extra Stable Reference
- CMS50 - B20 - Contol Interface With Dc Ammeter/Voltmeter
- CMS50 - B22 - 10MHZ Reference Output
- CMS50 - B26 - Signalling For Pocsag Zvei/Vdew - Need B53
- CMS50 - B27 - Atis Coder/Decoder For B5
- CMS50 - B29 - Fms-Bos Signalling
- CMS50 - B30 - Rs232C Interface For B5
- CMS50 - B31 - Additional Rf I/O (On Older Units)
- CMS50 - B32 - 100W Rf Power Meter
- CMS50 - B33 - 300HZ Lowpass Filter (For B5 Or B55)
- CMS50 - B34 - +13Dbm Output
- CMS50 - B39 - Contol Interface With 600Ohm Af Transformers
- CMS50 - B5 - Contol Interface With Relays + Ttl
- CMS50 - B53 - Signalling For Cellular Radio
- CMS50 - B54 - Iec/Ieee Bus
- CMS50 - B55 - Basic Control Interface
- CMS50 - B59 - Duplex Modulation Meter
- CMS50 - Z37 - Vswr Meter (For B5 Or B39)
| Model | CMS50 |
|---|
The Rohde & Schwarz CMS50 Radio Communications Test Set is a compact, all-in-one solution for testing analog radio systems. It supports a wide frequency range, precise measurement functions, and advanced modulation analysis. Designed for high-speed measurements, the CMS50 integrates RF generator and analyzer capabilities, making it ideal for comprehensive testing in service and production environments.
With a user-friendly interface and extensive feature set, the CMS50 supports transmitter and receiver testing with high accuracy and reliability. It is widely used in mobile radio maintenance, development, and quality assurance applications.
Testwall can supply the used Rohde & Schwarz CMS50 Radio Comms Test Set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CMS50 Radio Comms Test Set.
