Rohde & Schwarz CMS54
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.7 GHz |
| RF Power Output | -137 dBm to +13 dBm |
| Modulation Types | AM, FM, PM, FSK, BPSK, QPSK, 8PSK, QAM, GMSK, EDGE, W-CDMA, CDMA2000 |
| Receiver Sensitivity | Up to -120 dBm (typical) |
| Audio Frequency Range | 50 Hz to 25 kHz |
| Frequency Resolution | 1 Hz |
| RF Connector Type | N-type female, 50 Ohm |
| Communication Interfaces | GPIB, RS-232, USB, LAN (optional) |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Rohde & Schwarz CMS54 Options:
- CMS54 - CMS-B1 - OCXO Reference Oscillator for long-term stability
- CMS54 - CMS-B2 - OCXO Reference Oscillator for extremely high long-term stability
- CMS54 - CMS-B9 - Duplex Modulation Meter; same as CMS-B59, plus adjacent-channel power meter, harmonic measurements
- CMS54 - CMS-B22 - 10-MHz Reference Frequency Input/Output for external synchronization of measuring systems
- CMS54 - CMS-B32 - 100-W RF Power Meter for measurement of high RF input power
- CMS54 - CMS-B34 - 13-dBm Output; additional power output for off-air measurements
- CMS54 - CMS-B60 - Protection for Input 2; BNC connector with exchangeable fuse
- CMS54 - CMS-Z40 - Carrier Bag for CMS; bag for basic unit CMS and accessories
- CMS54 - CMS-B53 - Signalling Unit for Cellular Radio (NMT450 SIS, NMT450I, NMT900 SIS, E-AMPS, E-TACS, J-TACS, TACS II, R 2000)
- CMS54 - CMS-B26 - POCSAG signalling unit for testing POCSAG radiopaging receivers (for CMS-B53)
- CMS54 - CMS-B33 - 300-Hz Lowpass Filter for fast frequency and deviation measurement of subaudio tones with simultaneous audio modulation
- CMS54 - CMS-Z37 - Adapter for VSWR Measurements in conjunction with CMS-B5 or CMS-B39
- CMS54 - CMS-B5 - Optional Control Interface with DTMF Decoder, CCITT Filter, Centronics Interface, 8 Relays, 12 TTL I/O
- CMS54 - CMS-B55 - Optional Control Interface with DTMF Decoder, CCITT Filter, Centronics Interface
- CMS54 - CMS-B20 - Optional Control Interface with DTMF Decoder, CCITT Filter, Centronics Interface, DC Ammeter/Voltmeter
- CMS54 - CMS-B39 - Optional Control Interface with DTMF Decoder, CCITT Filter, Centronics Interface, 4 Relays, 8 TTL I/O, 600-Ω AF Transformers
| Model | CMS54 |
|---|

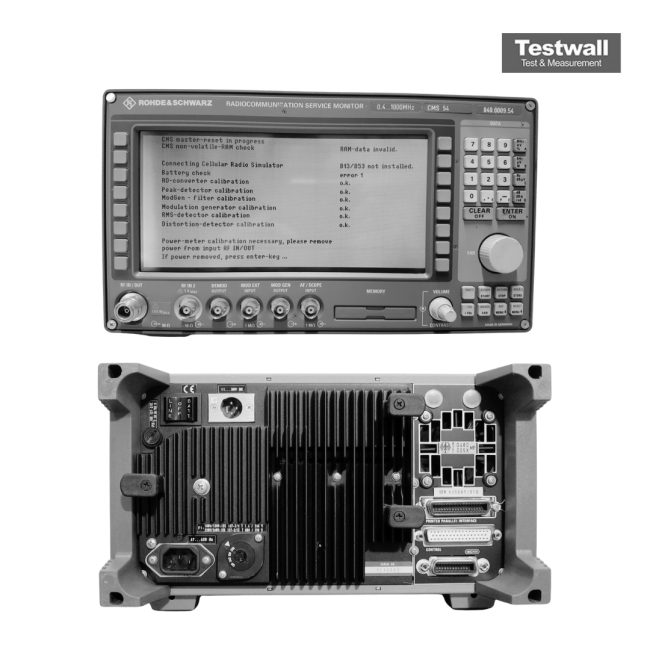

The Rohde & Schwarz CMS54 is a robust radiocommunications service monitor covering 400 KHz to 1 GHz. It integrates a digital oscilloscope, duplex modulation meter, and advanced spectrum analyser with an 80 dBm dynamic range, ensuring precision in automatic and harmonic measurements. Featuring a full-span tracking generator (0.4 MHz to 1000 MHz) and GPIB programmability, it's ideal for complex radio testing.
This unit supports automated diagnostics and spectrum analysis for seamless operation in professional service environments. Ideal for signal verification and harmonic assessment tasks.
Testwall can supply the used Rohde & Schwarz CMS54, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CMS54.
