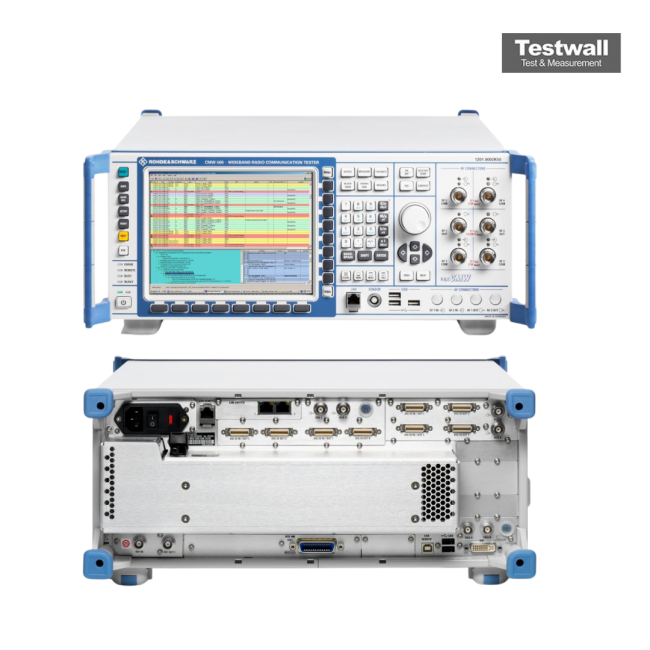

Rohde & Schwarz CMW500
| Attribute | Value |
|---|---|
| Frequency Range | 400 MHz to 6 GHz |
| Supported Radio Standards | LTE, LTE-Advanced, WCDMA/HSPA+, GSM/GPRS/EDGE, CDMA2000, 1xEV-DO, TD-SCDMA, WLAN (802.11 a/b/g/n/ac), Bluetooth, GPS/A-GPS |
| RF Bandwidth | Up to 160 MHz (WLAN); Up to 100 MHz (LTE-Advanced) |
| Maximum Output Power | +24 dBm |
| Minimum Output Power | -130 dBm |
| Number of RF Connectors | Up to 8 RF ports (configurable) |
| MIMO Support | Up to 4x4 MIMO for LTE-Advanced |
| Measurement Accuracy | ±0.3 dB (power measurement accuracy) |
| Interface Connectivity | USB, LAN (Ethernet), GPIB, Digital I/Q interfaces |
| Operating Temperature Range | +5 °C to +45 °C |
| Model | CMW500 |
|---|
The Rohde & Schwarz CMW500 is a wideband, all-in-one vector signal analyzer and generator designed for comprehensive wireless testing. It supports LTE (FDD), LTE-A, GSM, WCDMA/HSPA, CDMA2000, TD-SCDMA, WLAN 802.11 a/b/g/n/ac/ax, and DVB-T technologies. It offers flexible MIMO-capable RF frontends, IP throughput measurements, and 5G (FR1 and FR2) signaling tests with advanced E2E data solutions.
Ideal for R&D and service phases, it provides RF integration, protocol development, and MIMO fading test capabilities (up to 8DL CC, 4x4/8x2). Compatible with R&S CMW100 for remote-controlled test sequences.
Testwall can supply the used Rohde & Schwarz CMW500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz CMW500.
