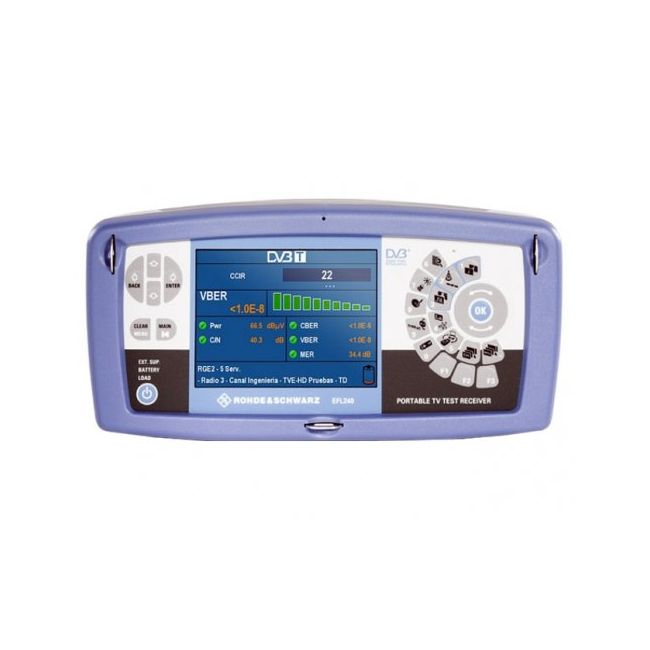

Rohde & Schwarz EFL240 Portable TV Test Receiver
47 MHz to 1000 MHz Frequency Range
DVB-T, DVB-T2, DVB-C, DVB-C2, ISDB-T, ATSC, analog TV Supported Standards
75 Ohm Input Impedance
7-inch color touchscreen LCD Display
Up to 4 hours of continuous operation Battery Life
| Attribute | Value |
|---|---|
| Frequency Range | 47 MHz to 1000 MHz |
| Supported Standards | DVB-T, DVB-T2, DVB-C, DVB-C2, ISDB-T, ATSC, analog TV |
| Input Impedance | 75 Ohm |
| Display | 7-inch color touchscreen LCD |
| Battery Life | Up to 4 hours of continuous operation |
| Measurement Functions | Signal level, MER, BER, constellation diagram, spectrum analysis |
| Connectivity | USB, LAN (Ethernet), Wi-Fi |
| Level Measurement Range | 20 dBµV to 120 dBµV |
| Operating Temperature | 0 °C to +50 °C |
| Weight | Approximately 2.5 kg (including battery) |
| Model | EFL240 |
|---|
The Rohde & Schwarz EFL240 is a portable TV test receiver with a frequency range from 5 MHz to 2500 MHz, MPEG-2/MPEG-4 decoding, and Common Interface for encrypted content. It includes a 5.7" TFT color display for SD/HD output and over 4 hours of battery life.
Ideal for setting up satellite, cable, and terrestrial systems, it supports comprehensive in-building TV signal distribution testing.
Testwall can supply the used Rohde & Schwarz EFL240, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz EFL240.
