Rohde & Schwarz ESIB40
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 40 GHz |
| Sensitivity (Noise Floor) | -150 dBm (typ.) at 1 GHz, 10 Hz RBW |
| Resolution Bandwidth (RBW) | 10 Hz – 10 MHz (in 1-3-10 steps), plus FFT bandwidths |
| Dynamic Range | Up to 110 dB (typical spurious-free dynamic range) |
| Input Impedance | 50 Ohm (N-type and SMA connectors) |
| Maximum Input Level | +20 dBm (continuous), 50 V DC max |
| Phase Noise | -113 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Measurement Receivers / Standards Compliance | CISPR, MIL-STD, VDE EMI measurement receiver functionality |
| Display / Interface | 10.4-inch color display, GPIB (IEEE 488), RS-232, and LAN interfaces |
| Power Supply | 100 – 240 V AC, 50/60 Hz, approximately 200 W power consumption |
Rohde & Schwarz ESIB40 Options:
- ESIB40 - ESIB-B2 - Preamplifier 20 dB, 7 GHz to 40 GHz
- ESIB40 - FSE-B7 - Vector Signal Analyzer
- ESIB40 - FSE-B10 - Tracking Generator 7 GHz
- ESIB40 - FSE-B11 - Tracking Generator 7 GHz with I/Q Modulator
- ESIB40 - FSE-B12 - Switchable Attenuator for Tracking Generator
- ESIB40 - FSE-B16 - Ethernet Card, RJ-45 connector
- ESIB40 - FSE-B17 - Second IEC/IEEE-bus Card
- ESIB40 - FSE-B18 - Removable Hard Disk for ESIB
- ESIB40 - FSE-B19 - Second Hard Disk for ESIB, WindowsNT
- ESIB40 - FSE-B21 - External mixer output for ESIB26/40
- ESIB40 - EMC32-E - EMC Measurement Software (32 bit)
- ESIB40 - ES-K1 - EMI Software for EMI Test Receiver (Windows)
- ESIB40 - ES-K2 - Script Development Kit
- ESIB40 - ES-K16 - Driver for ESIB7/26/40
- ESIB40 - ES-K30 - Driver for Mast (Schäfer) and Turntable (Schäfer)
- ESIB40 - ES-K31 - Driver for MDS Absorbing Clamp Slideway (Schäfer)
| Model | ESIB40 |
|---|

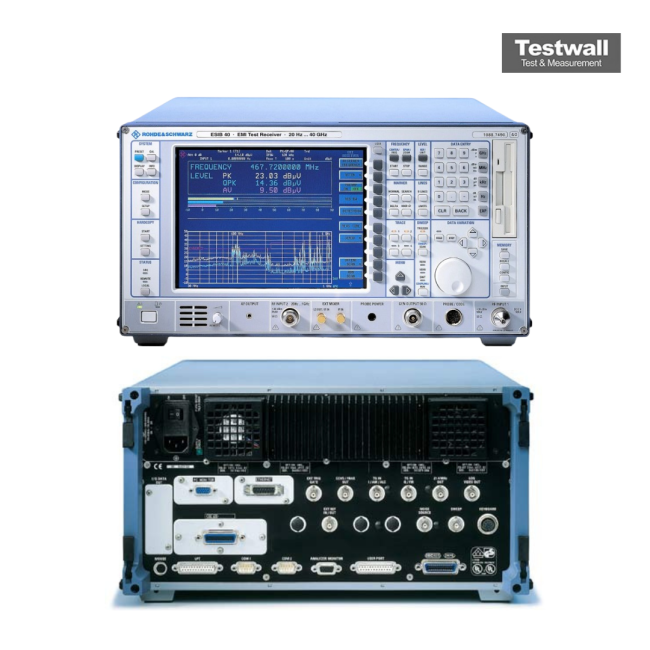

The Rohde & Schwarz ESIB-40 EMI Test Receiver operates from 20Hz to 40GHz, designed for precise interference measurements compliant with CISPR 16-1 and VDE 0876. It includes all required detectors, a 20dB preamplifier, and a selectable preselector or 1st mixer path for enhanced sensitivity and dynamic range.
This unit supports all major EMI standards including CISPR, EN, ANSI, FCC, MIL-STD, and more. It offers low noise, excellent intermodulation suppression, and optional analog/digital modulation analysis via the Vector Signal Analyzer FSE-B7 module.
Testwall can supply the used Rohde & Schwarz ESIB-40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESIB-40.
