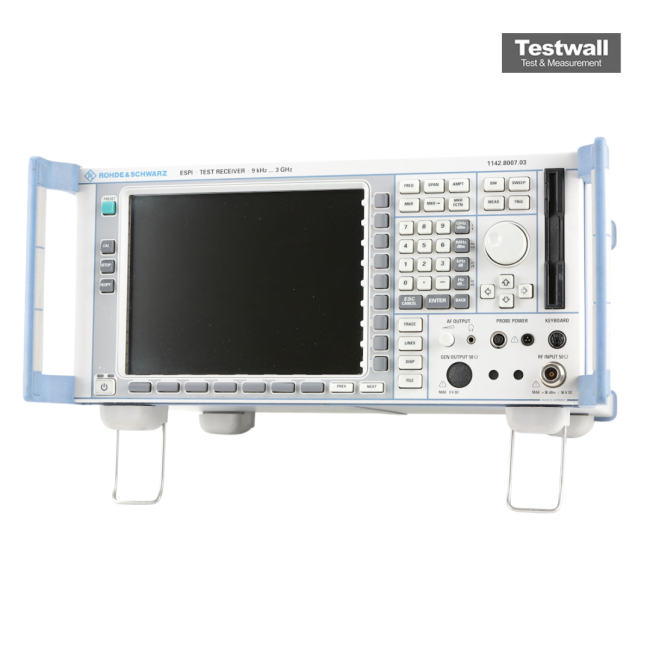

Rohde & Schwarz ESPI3
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Resolution Bandwidth (RBW) | 10 Hz to 10 MHz (in 1/3/10 steps) |
| Displayed Average Noise Level (DANL) | -150 dBm (typical) at 1 GHz, preamp off |
| Dynamic Range | Up to 100 dB |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) at attenuator input |
| EMI Measurement Compliance | CISPR 16-1-1 compliant, supports CISPR, MIL-STD, and FCC standards |
| Detectors | Peak, Quasi-Peak, Average, RMS, Sample, CISPR Average |
| Interfaces / Connectivity | GPIB, RS-232, USB, LAN (Ethernet) |
| Display | 10.4-inch color TFT LCD touchscreen |
Rohde & Schwarz ESPI3 9KHz-3GHz Precompliance Test Receiver Options:
- ESPI3 - B1 - Factory Fit Rugged Case And Carry Handle
- ESPI3 - B10 - External Generator Control
- ESPI3 - B16 - Lan Interface 100Bt
- ESPI3 - B2 - Preselector/Preamplifier
- ESPI3 - B20 - Extended Environment Spec
- ESPI3 - B30 - Dc Supply 12V-28V
- ESPI3 - B31 - Battery Pack + Charge Unit
- ESPI3 - B32 - Replace Battery Pack
- ESPI3 - B4 - Ocxo Reference
- ESPI3 - B6 - Tv Trigger And Adjustable Power Trigger
- ESPI3 - B9 - Internal Tracking Gen 9KHZ-3GHZ I/Q Modulator
| Model | ESPI3 |
|---|
The Rohde & Schwarz ESPI3 is a 9kHz to 3GHz precompliance test receiver designed for EMI diagnostics across CISPR, EN, ETS, FCC, ANSI C63.4, VCCI, and VDE standards. It features five selectable detectors and bandwidths of 200 Hz, 9 kHz, 120 kHz, and 1 MHz, including pulse weighting via quasi-peak detector. Built on the FSP spectrum analyzer platform, it ensures efficient EMC diagnostics in development.
Ideal for rapid and accurate EMC diagnostics, the ESPI3 simplifies compliance testing workflows with its hybrid spectrum analyzer integration and versatile bandwidth options.
Testwall can supply the used Rohde & Schwarz ESPI3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESPI3.
