Rohde & Schwarz ESRP3
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz – 3.6 GHz |
| Frequency Resolution | 1 Hz |
| Dynamic Range | Up to 110 dB |
| Displayed Average Noise Level (DANL) | –155 dBm (1 Hz bandwidth, typ.) |
| Input Impedance | 50 Ω |
| Resolution Bandwidth (RBW) | 10 Hz – 10 MHz (in 1-2-3-5-10 steps), including EMI bandwidths (200 Hz, 9 kHz, 120 kHz, 1 MHz) |
| Measurement Standards Compliance | CISPR 16-1-1, MIL-STD-461, FCC, ANSI |
| Detectors | Peak, quasi-peak, average, RMS, EMI average, CISPR average |
| RF Input Maximum Level | +30 dBm (1 W) continuous, DC 50 V max |
| Interface / Connectivity | LAN (1000BASE-T), USB, GPIB (optional), VGA output |
Rohde & Schwarz ESRP3 Options:
- ESRP3 - FSV-B1 - Ruggedized Housing
- ESRP3 - ESRP-B2 - Preselection and Preamplifier
- ESRP3 - FSV-B4 - OCXO Reference Frequency
- ESRP3 - FSV-B4 - OCXO Extended Frequency Stability
- ESRP3 - FSV-B9 - Tracking Generator (100 kHz to 7 GHz)
- ESRP3 - ESRP-B18 - Solid State Drive (removable hard drive)
- ESRP3 - ESRP-B19 - Spare Hard Drive (removable hard drive)
- ESRP3 - FSV-B22 - RF Preamplifier (100 kHz to 7 GHz)
- ESRP3 - ESRP-B29 - Frequency Extension 10 Hz and MIL bandwidths
- ESRP3 - FSV-B30 - DC Power Supply for 12 V supply voltage
- ESRP3 - ESRP-K53 - Time Domain Scan
- ESRP3 - ESRP-K56 - IF Analysis
| Model | ESRP3 |
|---|

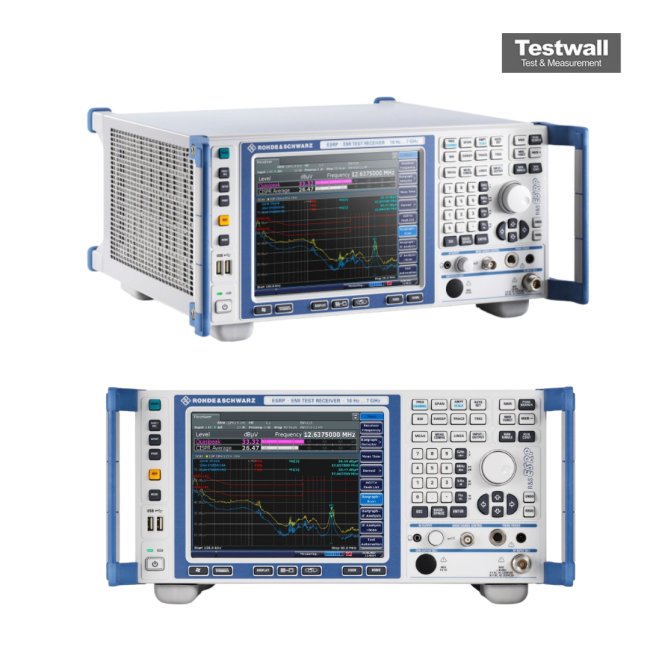

The Rohde & Schwarz ESRP3 EMI Test Receiver and Spectrum Analyzer operates in the 9 kHz to 3.6 GHz frequency range, offering fast and precise EMI diagnostics. Designed with advanced preselection and real-time spectrum analysis, the ESRP3 ensures accurate detection of electromagnetic interference. With CISPR 16-1-1 compliance and integrated tracking generator, it delivers laboratory-grade performance for EMI testing and general-purpose spectrum analysis.
Ideal for compliance testing, diagnostics, and RF analysis, the ESRP3 simplifies EMI measurements with intuitive touchscreen interface and fast scanning capabilities. Suitable for labs and production environments.
Testwall can supply the used Rohde & Schwarz ESRP3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ESRP3.
