Rohde & Schwarz FSEB30
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz – 7 GHz |
| Resolution Bandwidth | 10 Hz – 10 MHz |
| Phase Noise | -130 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Displayed Average Noise Level (DANL) | -155 dBm (typical, 1 GHz, 10 Hz RBW) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | >100 dB |
| Video Bandwidth | 1 Hz – 10 MHz |
| Sweep Time | 2.5 ms – 16000 s (frequency domain) |
| RF Input Connector | N-Type Female (front panel) |
Rohde & Schwarz FSEB30 Options:
- FSEB30 - FSE-B1 - Colour Display (factory-fitted only)
- FSEB30 - FSE-B3 - TV Demodulator: Frame frequency and line trigger, trigger delay and gap sweep (factory-fitted only)
- FSEB30 - FSE-B4 - Low Phase Noise and OCXO: Typ. phase noise only −125 dBc (BW = 1 Hz, at 10 kHz from carrier)
- FSEB30 - FSE-B5 - FFT Filter (1 Hz to 1 kHz)
- FSEB30 - FSE-B7 - Vector Signal Analyzer: Demodulation of digitally modulated signals
- FSEB30 - FSE-B10 - Tracking Generator (9 kHz to 7 GHz)
- FSEB30 - FSE-B11 - Tracking Generator with I/Q Modulator (9 kHz to 7 GHz)
- FSEB30 - FSE-B12 - Switchable Attenuator for Tracking Generators FSE-B8/9/10/11 (0 to 70 dB)
- FSEB30 - FSE-B15 - Computer Function: Additional use of 486 processor for DOS or Windows applications
- FSEB30 - FSE-B16 - Ethernet Interface: LAN integration for use in production
- FSEB30 - FSE-B17 - 2nd IEC/IEEE-Bus Interface
- FSEB30 - FSE-B22 - Increased Level Accuracy up to 2 GHz (factory-fitted only)
- FSEB30 - FSE-K3 - Noise Measurement Software: Noise figure or noise temperature measurement (Y-factor method)
- FSEB30 - FSE-K10 - Application Firmware for mobile radio transmitter measurements to GSM900 specs 11.20 (mobiles), GSM1800 and GSM1900
- FSEB30 - FSE-K11 - Application Firmware for mobile radio transmitter measurements to GSM900 specs 11.20 (BTS), GSM1800 and GSM1900
| Model | FSEB30 |
|---|

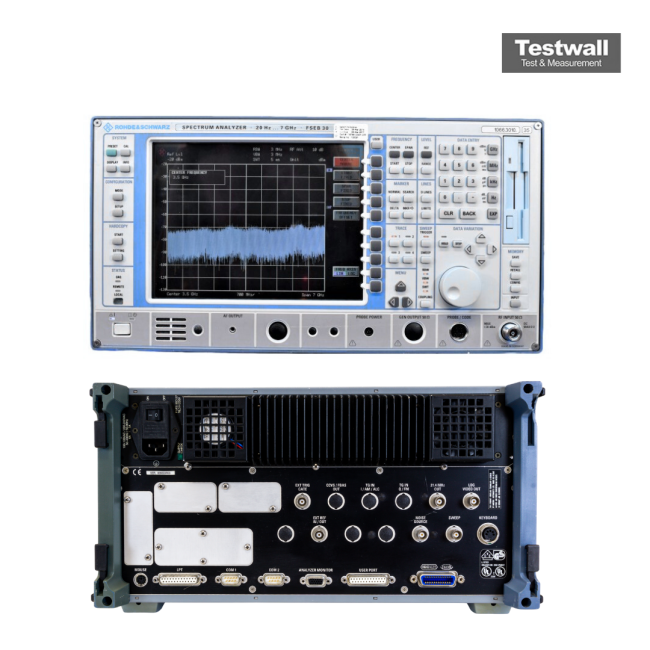

The Rohde & Schwarz FSEB30 Spectrum Analyzer is designed for both general-purpose measurements and complex digital communication systems, offering ultra-wide dynamic range, advanced modulation analysis, and ultra-fast sweep rates
It supports BPSK, QPSK, QAM, MSK, AM, FM, PM and has a built-in AM/FM demodulator
This unit features 1 Hz to 10 MHz resolution bandwidths, a -150 dBm displayed noise floor, and internal RF triggering
Ideal for GSM, NADC, and EDGE testing with one-button demodulation
Testwall can supply the used Rohde & Schwarz FSEB30, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSEB30
