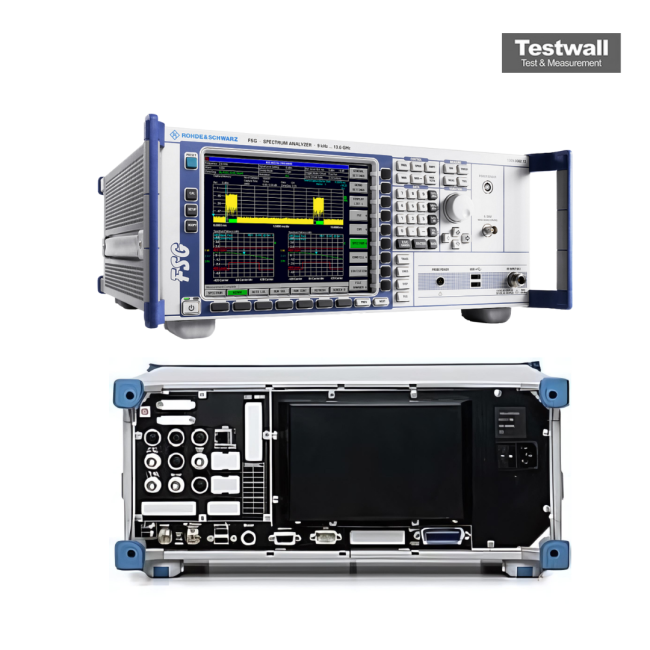

Rohde & Schwarz FSG8 9KHz - 8GHz Spectrum Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8 GHz |
| Resolution Bandwidth | 10 Hz to 10 MHz |
| Phase Noise | -106 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -155 dBm (typical, with preamplifier) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Sweep Time | 2.5 ms to 16000 s |
| Display | 10.4-inch color TFT LCD |
| Interfaces | USB, LAN (Ethernet), GPIB (optional), RS-232 |
Rohde & Schwarz FSG8 9KHz - 8GHz Spectrum Analyser Options:
- FSG8 - FSQ-B17 - Digital Baseband Interface
- FSG8 - FSU-B25 - Electronic Attenuator, 0 dB to 30 dB, and 20 dB Preamplifier (3.6 GHz)
- FSG8 - FS-K5 - GSM/EDGE Application Firmware
- FSG8 - FS-K7 - FM Measurement Demodulator
- FSG8 - FS-K8 - Bluetooth® Application Firmware
- FSG8 - FS-K9 - Power Sensor Measurements
- FSG8 - FS-K30 - Application Firmware for Noise Figure and Gain Measurements
- FSG8 - FS-K40 - Application Firmware for Phase Noise Measurement
- FSG8 - FS-K72 - 3GPP BTS/Node B FDD Application Firmware
- FSG8 - FS-K73 - 3GPP UE FDD Application Firmware
- FSG8 - FS-K74 - 3GPP HSDPA BTS Application Firmware
- FSG8 - FS-K76 - 3GPP TD-SCDMA BTS Application Firmware
- FSG8 - FS-K77 - 3GPP TD-SCDMA UE Application Firmware
- FSG8 - FS-K82 - CDMA2000®/IS-95 (cdmaOne)/1xEV-DV BTS Application Firmware
- FSG8 - FS-K83 - CDMA2000®/1xEV-DV MS Application Firmware
- FSG8 - FS-K84 - CDMA2000®/1xEV-DO BTS Application Firmware
- FSG8 - FS-K85 - CDMA2000®/1xEV-DO MS Application Firmware
- FSG8 - FSQ-K70 - Vector Signal Analyzer
- FSG8 - FSQ-K90 - WLAN 802.11a Application Firmware
- FSG8 - FSQ-K91 - WLAN 802.11a/b/g/j Application Firmware
- FSG8 - FSQ-K90U - Upgrade from R&S® FSQ-K90 to R&S® FSQ-K91
- FSG8 - FSQ-K92 - WiMAX 802.16-2004 OFDM Application Firmware
- FSG8 - FSQ-K93 - WiMAX 802.16e, WiBro Application Firmware
- FSG8 - FSQ-K92U - Upgrade from R&S® FSQ-K92 to R&S® FSQ-K93
- FSG8 - FSQ-K100 - EUTRA/LTE Downlink External PC Software
- FSG8 - 1309.0102.32 - Printed manuals (include operating and service manual)
- FSG8 - PCK 0292.2013.10 - IEC/IEEE Bus Cable, 1 m
- FSG8 - PCK 0292.2013.20 - IEC/IEEE Bus Cable, 2 m
- FSG8 - ZZA-411 - 19" Rack Adapter
- FSG8 - ZZA-T45 - Adapter for mounting on telescopic rails (only with R&S® ZZA-411 19" Rack Adapter)
- FSG8 - RAM 0358.5414.02 - Matching pad 50/75 Ω, L Section, matching at both ends
- FSG8 - RAZ 0358.5714.02 - Matching pad 50/75 Ω, Series Resistor, 25 Ω, matching at one end
- FSG8 - RBU100 1073.8495.XX - High-power attenuator, 100 W, 3/6/10/20/30 dB, 1 GHz
- FSG8 - RBU50 1073.8695.XX - High-power attenuator, 50 W, 3/6/10/20/30 dB, 2 GHz
- FSG8 - RDL50 1035.1700.52 - High-power attenuator, 50 W, 20 dB, 6 GHz
- FSG8 - 1065.9480.00 - Probe power connector, 3-pin
| Model | FSG8 |
|---|
The Rohde & Schwarz FSG8 Spectrum Analyser operates from 9kHz to 8GHz, with RBW from 1Hz to 10MHz and a DANL of -156dBm, enabling precise and deep signal analysis. It features a 28 MHz I/Q demodulation bandwidth and 4 Msample memory for I and Q signals, ensuring advanced demodulation capabilities.
Ideal for development and production testing of 3GPP, GSM-MCPA, WiMAX, LTE, WLAN, and mobile systems including GSM, EDGE, 3GPP FDD, HSDPA, CDMA2000, and TD-SCDMA.
Testwall can supply the used Rohde & Schwarz FSG8 9kHz to 8GHz Spectrum Analyser, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSG8 9kHz to 8GHz Spectrum Analyser.
