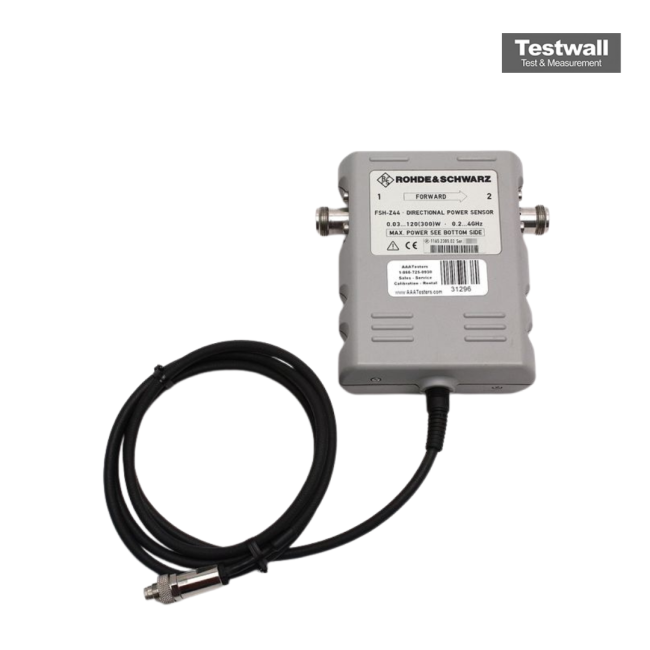

Rohde & Schwarz FSH-Z44
200MHz To 4GHz 120W Directional Power Sensor
DC to 3 GHz Frequency Range
≥ 30 dB (typ. 40 dB) Directivity
50 Ω Impedance
0 dB to 60 dB Return Loss Measurement Range
-30 dBm to +20 dBm Power Measurement Range
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3 GHz |
| Directivity | ≥ 30 dB (typ. 40 dB) |
| Impedance | 50 Ω |
| Return Loss Measurement Range | 0 dB to 60 dB |
| Power Measurement Range | -30 dBm to +20 dBm |
| Connector Type | N-type (female) |
| Compatible Instruments | Rohde & Schwarz FSH series handheld spectrum analyzers |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Weight | Approximately 0.7 kg |
| Model | FSH-Z44 |
|---|
The Rohde & Schwarz FSH-Z44 Directional Power Sensor operates from 200MHz to 4GHz with a high power measurement capacity up to 120W, eliminating the need for external attenuators. It supports average power readings and is fully compatible with a wide range of common modulation standards.
Ideal for integration with the FSH series, this sensor ensures efficient and accurate directional power measurements in diverse RF testing environments.
Testwall can supply the used Rohde & Schwarz FSH-Z44, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH-Z44.
