Rohde & Schwarz FSH18
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 18 GHz |
| Dynamic Range | Up to 110 dB |
| Display | 7-inch color touchscreen, 800 x 480 pixels |
| Battery Life | Up to 4 hours of operation on a single charge |
| Measurement Modes | Spectrum Analyzer, Vector Network Analyzer, Power Meter, Cable and Antenna Tester |
| DANL (Displayed Average Noise Level) | -161 dBm (typ.) with preamplifier enabled |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
| Interfaces | USB, LAN (Ethernet), SD card slot, Bluetooth (optional) |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
Rohde & Schwarz FSH18 Options:
- FSH18 - FSH-B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH18 - FSH-K1 - Remote Control via RS-232-C
- FSH18 - FSH-K3 - Receiver Mode
| Model | FSH18 |
|---|

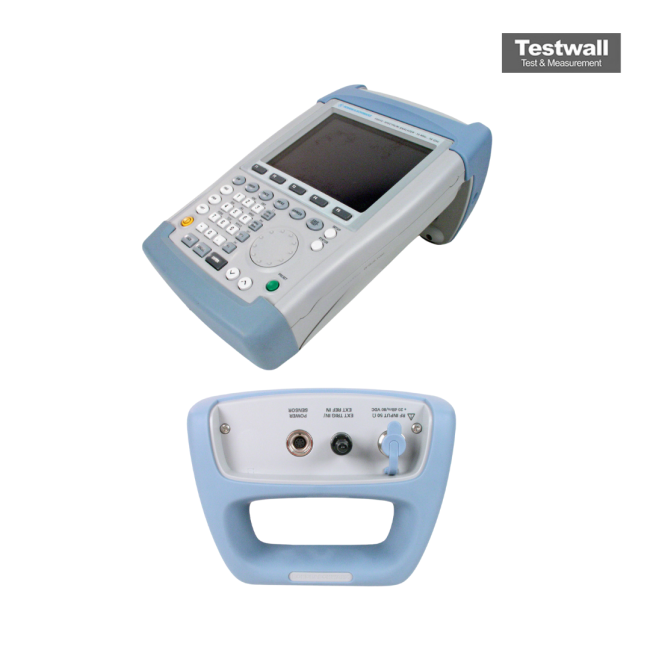

The Rohde & Schwarz FSH18 is a rugged, handheld spectrum analyzer covering 10MHz to 18GHz, with resolution bandwidths from 100Hz to 1MHz and DANL as low as -128dBm. It integrates key RF analysis tools, including a cable and antenna tester, vector network analyzer, and power meter functions. Lightweight at 3kg and built for field use, it supports long battery life, splash-proof connectors, and high-contrast displays.
It performs critical tasks like cable fault detection, antenna match testing, power measurements, and TDMA power analysis. Predefined settings simplify LTE, WCDMA, GSM, and EDGE assessments.
Testwall can supply the used Rohde & Schwarz FSH18, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH18.
