Rohde & Schwarz FSH3-13
3GHz Handheld Spectrum Analyser / Tracking Gen
100 kHz to 3 GHz Frequency Range
100 Hz to 1 MHz Resolution Bandwidth
100 dB Display Range
-20 dBm to +20 dBm Reference Level Range
< -90 dBc/Hz at 10 kHz offset Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Resolution Bandwidth | 100 Hz to 1 MHz |
| Display Range | 100 dB |
| Reference Level Range | -20 dBm to +20 dBm |
| Phase Noise | < -90 dBc/Hz at 10 kHz offset |
| DANL (Displayed Average Noise Level) | -130 dBm (typical) at 1 MHz RBW |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +20 dBm (continuous) |
| Battery Operating Time | Approximately 3 hours with standard battery pack |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
Rohde & Schwarz FSH3-13 Options:
- FSH3-13 - FSH-B1 - Distance-to-Fault Measurement for the R&S FSH (includes 1 m cable, R&S FSH-Z2 required)
- FSH3-13 - FSH-K1 - Remote Control via RS-232-C for the R&S FSH
- FSH3-13 - FSH-K2 - Vector Transmission and Reflection Measurements for the R&S FSH
- FSH3-13 - FSH-K3 - Receiver Mode for the R&S FSH
- FSH3-13 - FSH-K4 - 3GPP FDD Code Domain Power BTS/Node B Measurement for the R&S FSH3 model 23 as of serial number 103500
| Model | FSH3-13 |
|---|

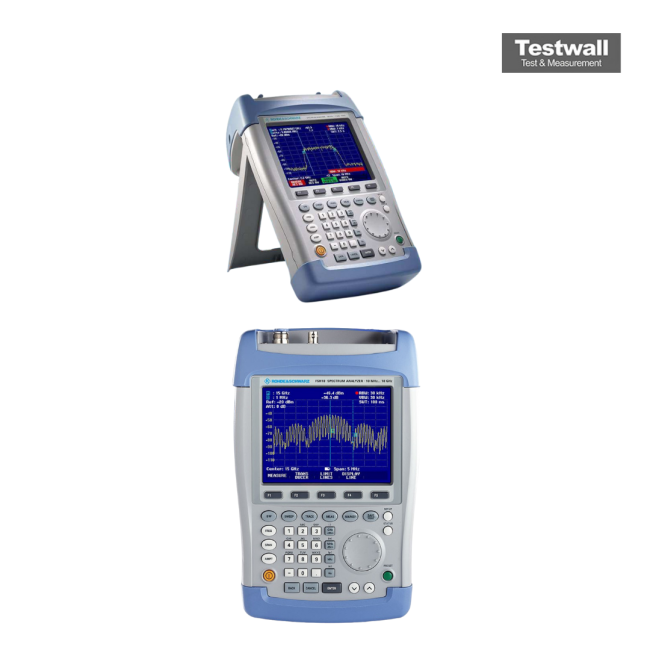

The Rohde & Schwarz FSH3-13 is a rugged handheld spectrum analyzer with a frequency range from 100 kHz to 3 GHz. It includes the 1145.5850.13 tracking generator, allowing for versatile testing and signal tracing in the field.
Ideal for service and maintenance of wireless systems, the FSH3-13 offers reliable spectrum analysis in compact form. Integrated tracking generator supports scalar network analysis.
Testwall can supply the used Rohde & Schwarz FSH3-13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH3-13.
