Rohde & Schwarz FSH3 (model .23)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Resolution Bandwidth | 100 Hz to 1 MHz |
| Display Range | 100 dB |
| Reference Level Range | -20 dBm to +20 dBm |
| Phase Noise | -90 dBc/Hz at 10 kHz offset (typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +20 dBm (continuous) |
| Battery Operating Time | Up to 3 hours with standard battery pack |
| Display | 5.7-inch color TFT LCD, 320 x 240 pixels |
| Weight | Approximately 3.3 kg (7.3 lbs) with battery |
| Model | FSH3 |
|---|

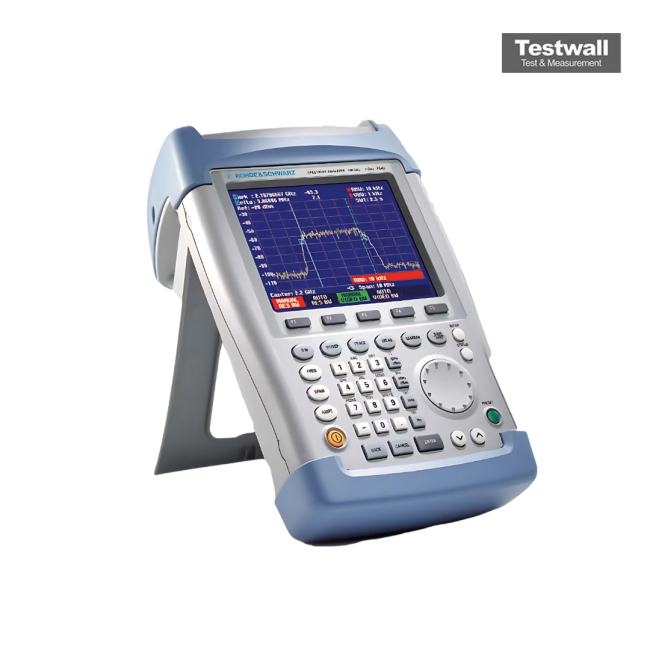

The Rohde & Schwarz FSH3 Model 23 is a compact, handheld spectrum analyzer that also functions as a power meter, cable and antenna tester, and a two-port vector network analyzer. It supports essential RF analysis tasks with high measurement accuracy, suitable for technicians and maintenance teams.
Ideal for transmitter maintenance, antenna checks, signal assessments, and lab use, the FSH3 offers a bright color display, ergonomic keypad layout, and 4.5-hour battery life with fast-swapping capability.
Testwall can supply the used Rohde & Schwarz FSH3 Model 23, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH3 Model 23.
