Rohde & Schwarz FSH4-24 3.6 GHz Handheld Spectrum/Preamp/Tracking Gen/VSWR, Type N (f)
3.6 GHz Handheld Spectrum/Preamp/Tracking Gen/VSWR
100 kHz to 3.6 GHz Frequency Range
Type N (Female) Connector Type
Built-in Preamplifier Included Preamplifier
Integrated Tracking Generator Tracking Generator
VSWR and Return Loss Bridge Included VSWR/Return Loss Measurement
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3.6 GHz |
| Connector Type | Type N (Female) |
| Preamplifier | Built-in Preamplifier Included |
| Tracking Generator | Integrated Tracking Generator |
| VSWR/Return Loss Measurement | VSWR and Return Loss Bridge Included |
| Display | 6.5-inch Color LCD Display |
| Dynamic Range | Up to 100 dB |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Battery Life | Approximately 3 Hours of Operation |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Rohde & Schwarz FSH4-24 3.6 GHz Handheld Spectrum/Preamp/Tracking Gen/VSWR, Type N (f) Options:
- FSH4-24 - FSH-K14 - Spectrogram Measurement Application
- FSH4-24 - FSH-K15 - Interference Analysis Measurement Application
- FSH4-24 - FSH-K16 - Geotagging Measurement Application
- FSH4-24 - FSH-K40 - Remote Control via LAN or USB
- FSH4-24 - FSH-K41 - Distance-to-Fault Analysis (for models .24 and .28 only, requires R&S FSH-Z320 or R&S FSH-Z321 and R&S FSH-Z28 or R&S FSH-Z29)
- FSH4-24 - FSH-K42 - Vector Network Analysis (for models .24 and .28 only)
- FSH4-24 - FSH-K45 - Vector Voltmeter (for models .24 and .28 only)
- FSH4-24 - FSH-K10 - GSM Edge Measurement Application
- FSH4-24 - FSH-K44 - 3GPP WCDMA BTS/NodeB Pilot Channel and EVM Measurement Application
- FSH4-24 - FSH-K44E - 3GPP WCDMA BTS/NodeB Code Domain Power and EVM Measurement Application
- FSH4-24 - FSH-K46 - CDMA2000 BTS Pilot Channel and EVM Measurement Application
- FSH4-24 - FSH-K46E - CDMA2000 BTS Code Domain Power Measurement Application (R&S FSH-K46 required)
- FSH4-24 - FSH-K47 - 1xEV-DO BTS Pilot Channel and EVM Measurement Application
- FSH4-24 - FSH-K47E - 1xEV-DO BTS PN Scanner and Time Domain Power Measurement Application (R&S FSH-K47 required)
- FSH4-24 - FSH-K48 - 3GPP TD-SCDMA BTS Power and P-CCPCH EVM Measurement Application
- FSH4-24 - FSH-K48E - 3GPP TD-SCDMA/HSDPA BTS Code Domain Power and EVM Measurement Application (R&S FSH-K48 required)
- FSH4-24 - FSH-K50 - LTE FDD Downlink Pilot Channel and EVM Measurement Application
- FSH4-24 - FSH-K51 - LTE TDD Downlink Pilot Channel and EVM Measurement Application
- FSH4-24 - FSH-K50E - LTE FDD Downlink Extended Channel and Modulation Measurement Application (R&S FSH-K50 required)
- FSH4-24 - FSH-K51E - LTE TDD Downlink Extended Channel and Modulation Measurement Application (R&S FSH-K51 required)
- FSH4-24 - FSH-K43 - Receiver Mode and Channel Scan Measurement Application
| Model | FSH4-24 |
|---|

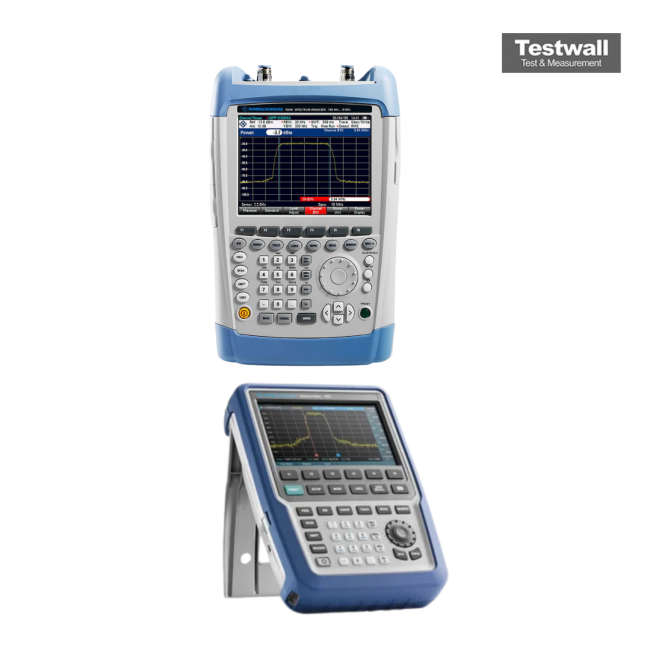

The Rohde & Schwarz FSH4-24 is a rugged handheld spectrum analyzer with a frequency range of 100 kHz to 3.6 GHz. It features an integrated preamplifier, tracking generator, and internal VSWR bridge, making it ideal for on-site RF measurements.
Its lightweight design (3 kg with battery), splash-proof housing, and user-friendly interface with automatic test wizards support efficient testing in the field.
Testwall can supply the used Rohde & Schwarz FSH4-24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH4-24.
