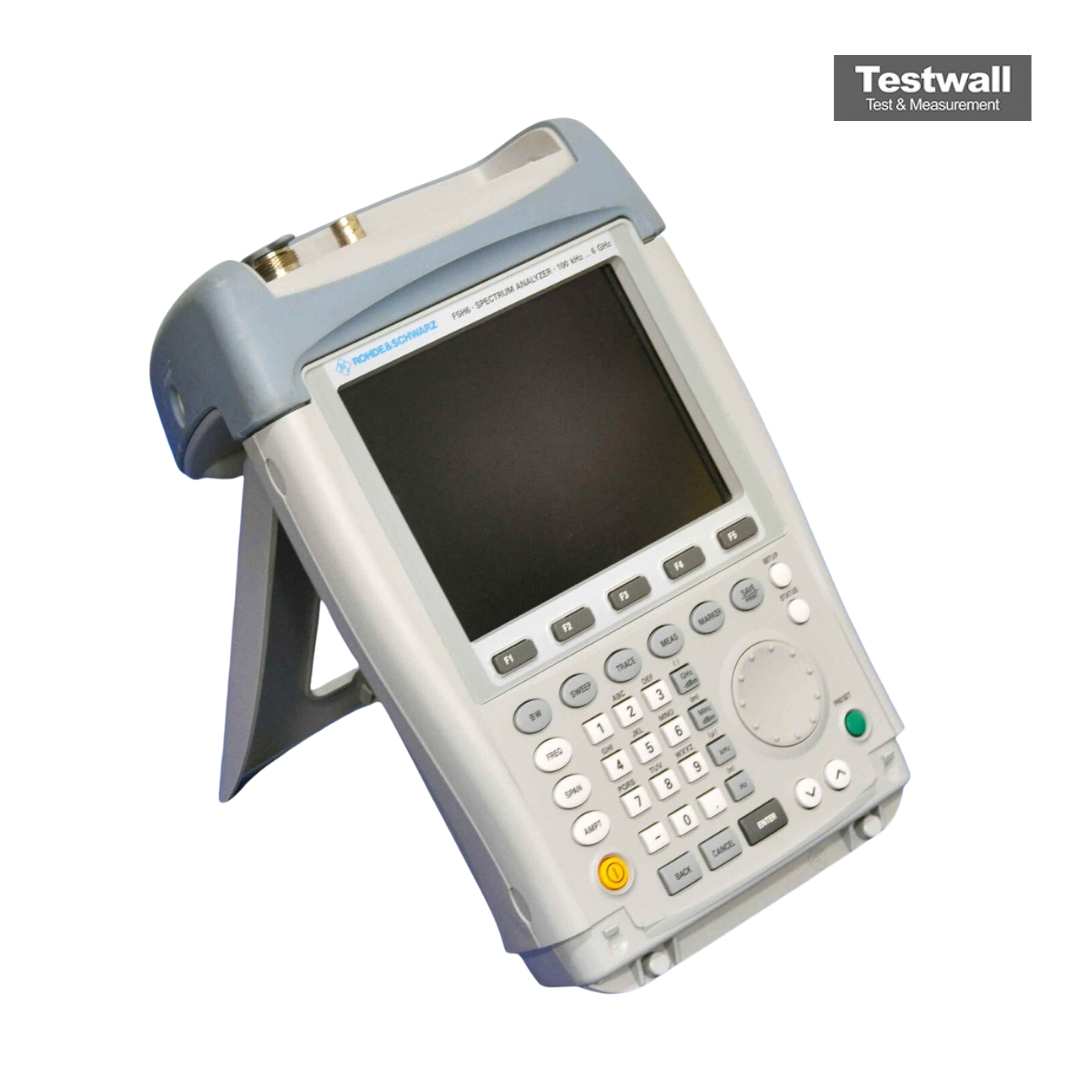

Rohde & Schwarz FSH6
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6 GHz |
| Display | 6.5-inch color TFT LCD (640 x 480 pixels) |
| Dynamic Range | Up to 100 dB |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Phase Noise | < -95 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| DANL (Displayed Average Noise Level) | -150 dBm (typ.) with preamplifier enabled |
| Battery Operating Time | Up to 3 hours with standard battery pack |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
| Input Impedance | 50 Ohm |
| Interfaces | USB, LAN (Ethernet), SD card slot |
Rohde & Schwarz FSH6 Options:
- FSH6 - B1 - Distance-to-Fault Measurement (includes 1 m cable, R&S FSH-Z2 required)
- FSH6 - K1 - Remote Control via RS-232-C
- FSH6 - K2 - Vector Transmission and Reflection Measurements
- FSH6 - K3 - Receiver Mode
| Model | FSH6 |
|---|
The Rohde & Schwarz FSH6 is a robust handheld spectrum analyser covering 100kHz to 6GHz, with a 100Hz–1MHz resolution bandwidth, -135dBm DANL, and optional tracking generator and preamp. Designed for field use, it includes spectrum analysis, power meter, cable and antenna tests, and vector network analysis capabilities, delivering precise and versatile RF measurements in a compact form.
This analyser is ideal for outdoor installation, maintenance of transmitter systems, antenna matching, TDMA power tests, and signal quality evaluations. It also supports EMF field strength, directional power measurements, and GPS-aided frequency accuracy.
Testwall can supply the used Rohde & Schwarz FSH6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH6.
