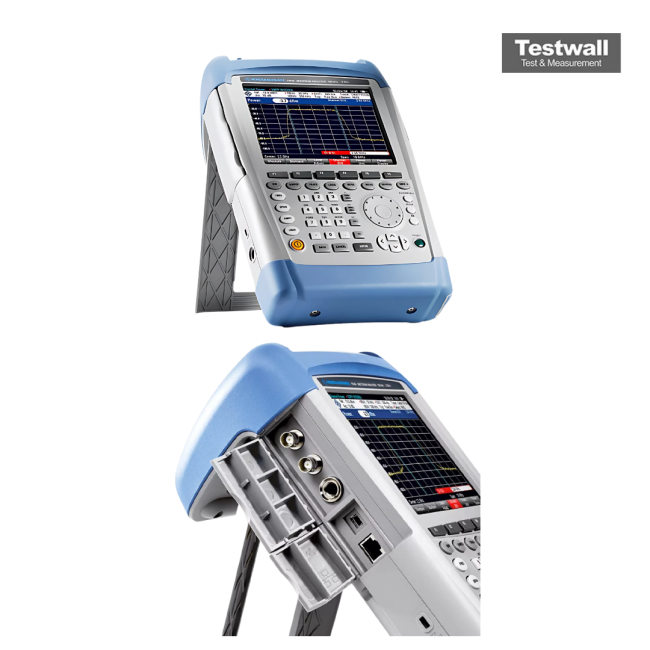

Rohde & Schwarz FSH8-08 8 GHz Handheld Spectrum Analyzer, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| RF Connector Type | Type N (female) |
| Display Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Phase Noise | < -100 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Dynamic Range | Up to 110 dB |
| Displayed Average Noise Level (DANL) | -161 dBm (1 Hz RBW, preamp on, at 1 GHz) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +20 dBm (continuous), +33 dBm (peak, < 10 µs) |
| Battery Operating Time | Approximately 3 hours with standard battery pack |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
Rohde & Schwarz FSH8-08 8 GHz Handheld Spectrum Analyzer, Type N (f) Options:
- FSH8-08 - FSH-K14 - Spectrogram Measurement Application
- FSH8-08 - FSH-K40 - Remote Control via LAN or USB
- FSH8-08 - FSH-K41 - Distance-to-Fault Analysis (for models .24 and .28 only, requires R&S FSH-Z320 or R&S FSH-Z321 and R&S FSH-Z28 or R&S FSH-Z29)
- FSH8-08 - FSH-K42 - Vector Network Analysis (for models .24 and .28 only)
- FSH8-08 - FSH-K45 - Vector Voltmeter (for models .24 and .28 only)
- FSH8-08 - FSH-K44 - 3GPP WCDMA BTS/Node B Pilot Channel and EVM Measurement Application
- FSH8-08 - FSH-K46 - CDMA2000 BTS Pilot Channel and EVM Measurement Application
- FSH8-08 - FSH-K46E - CDMA2000 BTS Code Domain Power Measurement Application (R&S FSH-K46 required)
| Model | FSH8-08 |
|---|
The Rohde & Schwarz FSH8/08 is a portable spectrum analyzer offering a frequency analysis range from 9 kHz to 8 GHz, featuring 100 Hz to 3 MHz resolution bandwidth (RBW), an integrated preamplifier, and a phase noise of less than -120 dBc. With a display noise floor down to -141 dBm, it includes a high-resolution 14 cm color LCD and supports data transfer via LAN and USB. The analyzer weighs 2.5 kg and operates on battery for up to 4 hours and 30 minutes.
It comes equipped with a 3.5 mm audio jack output and a connector for external power sensors. Optional measurement software enables testing for GSM, EDGE, 3GPP-WCDMA, CDMA2000, and 1xEVDO standards.
Testwall can supply the used Rohde & Schwarz FSH8/08, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH8/08.
