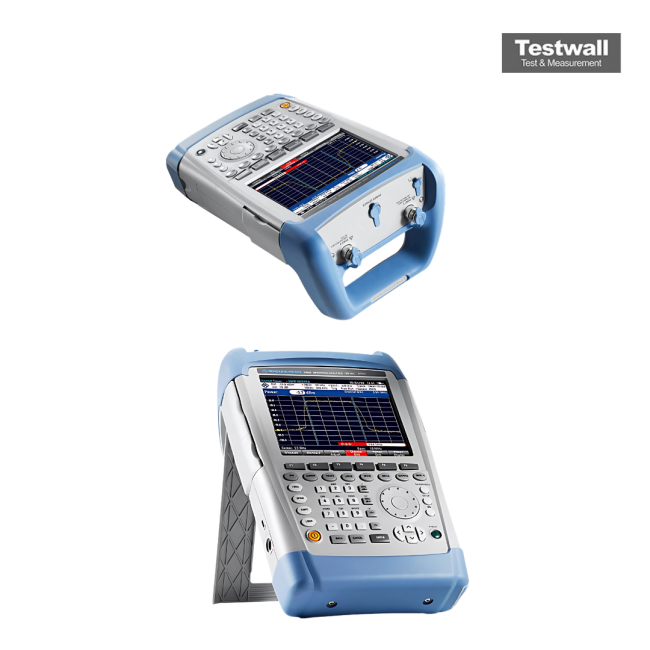

Rohde & Schwarz FSH8-28 8 GHz Handheld Spectrum/Preamp/Tracking Gen/VSWR, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Connector Type | Type N (Female) |
| Display Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Dynamic Range | >95 dB |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Displayed Average Noise Level (DANL) | -161 dBm (with preamplifier, 1 Hz RBW) |
| Preamplifier | Built-in low-noise preamplifier included |
| Tracking Generator | Integrated tracking generator for scalar network analysis |
| VSWR/Return Loss Measurement | Supported via built-in VSWR bridge |
| Battery Life | Approximately 4 hours with internal Li-Ion battery pack |
Rohde & Schwarz FSH8-28 8 GHz Handheld Spectrum/Preamp/Tracking Gen/VSWR, Type N (f) Options:
- FSH8-28 - FSH-B106 - Li-Ion Battery Pack, 6.75 Ah installed in factory
- FSH8-28 - FSH-K14 - Spectrogram Measurement Application
- FSH8-28 - FSH-K15 - Interference Analysis Measurement Application
- FSH8-28 - FSH-K16 - Geotagging Measurement Application
- FSH8-28 - FSH-K17 - Indoor Mapping Measurement Application
- FSH8-28 - FSH-K29 - Pulse Measurements with Power Sensor
- FSH8-28 - FSH-K40 - Remote Control via LAN or USB
- FSH8-28 - FSH-K41 - Distance-to-Fault Analysis
- FSH8-28 - FSH-K42 - Vector Network Analysis
- FSH8-28 - FSH-K45 - Vector Voltmeter
- FSH8-28 - FSH-K10 - GSM Edge Measurement Application
- FSH8-28 - FSH-K44 - 3GPP WCDMA BTS/NodeB Pilot Channel and EVM Measurement Application
- FSH8-28 - FSH-K44E - 3GPP WCDMA BTS/NodeB Code Domain Power and EVM Measurement Application
- FSH8-28 - FSH-K46 - CDMA2000 BTS Pilot Channel and EVM Measurement Application
- FSH8-28 - FSH-K46E - CDMA2000 BTS Code Domain Power Measurement Application
- FSH8-28 - FSH-K47 - 1xEV-DO BTS Pilot Channel and EVM Measurement Application
- FSH8-28 - FSH-K47E - 1xEV-DO BTS PN Scanner and Time Domain Power Measurement Application
- FSH8-28 - FSH-K48 - 3GPP TD-SCDMA BTS Power and P-CCPCH EVM Measurement Application
- FSH8-28 - FSH-K48E - 3GPP TD-SCDMA/HSDPA BTS Code Domain Power and EVM Measurement Application
- FSH8-28 - FSH-K50 - LTE FDD Downlink Pilot Channel and EVM Measurement Application
- FSH8-28 - FSH-K51 - LTE TDD Downlink Pilot Channel and EVM Measurement Application
- FSH8-28 - FSH-K50E - LTE FDD Downlink Extended Channel and Modulation Measurement Application
- FSH8-28 - FSH-K51E - LTE TDD Downlink Extended Channel and Modulation Measurement Application
- FSH8-28 - FSH-K43 - Receiver Mode and Channel Scan Measurement Application
| Model | FSH8-28 |
|---|
The Rohde & Schwarz FSH8.28 is an 8 GHz handheld spectrum analyzer with integrated tracking generator and preamp, optimized for field deployment. It supports a frequency range from 100 kHz to 8 GHz with excellent sensitivity (DANL –141 dBm) and a compact 3 kg build for mobility. Key features include automated measurements, a high-resolution display, intuitive interface, and USB/LAN remote control.
Its rugged design and long battery life make it perfect for RF system installations, maintenance, interference detection, and broadcast site verification in harsh environments.
Testwall can supply the used Rohde & Schwarz FSH8.28, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSH8.28.
