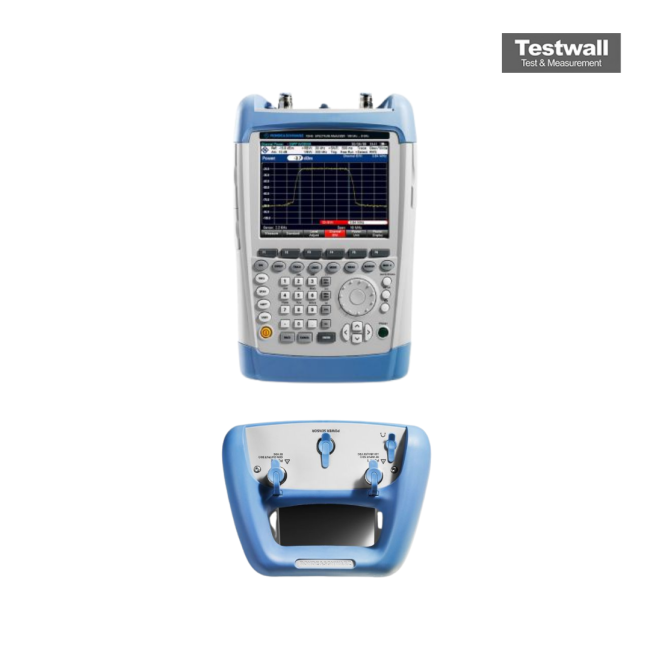

Rohde & Schwarz FSH8 Handheld Spectrum Analyser
100 kHz to 8 GHz Frequency Range
100 Hz to 3 MHz Resolution Bandwidth (RBW)
-144 dBm (typical) at 1 GHz Display Average Noise Level (DANL)
>95 dB Dynamic Range
<-100 dBc/Hz at 10 kHz offset (1 GHz) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -144 dBm (typical) at 1 GHz |
| Dynamic Range | >95 dB |
| Phase Noise | <-100 dBc/Hz at 10 kHz offset (1 GHz) |
| Input Impedance | 50 Ohm |
| Maximum Input Power (RF) | +20 dBm (100 mW) |
| Battery Operating Time | Approximately 3.5 hours with internal battery |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels (VGA) |
| Weight | Approximately 3.3 kg (7.3 lbs) including battery |
Rohde & Schwarz FSH8 Handheld Spectrum Analyser Options:
- FSC3 - 1314.3006.03 - Spectrum Analyzer, 9 kHz to 3 GHz
- FSC3 - 1314.3006.13 - Spectrum Analyzer, 9 kHz to 3 GHz, with tracking generator
- FSC6 - 1314.3006.06 - Spectrum Analyzer, 9 kHz to 6 GHz
- FSC6 - 1314.3006.16 - Spectrum Analyzer, 9 kHz to 6 GHz, with tracking generator
- FSC - B22 - Preamplifier, 100 kHz to 3 GHz/6 GHz (for the R&S FSC3/6)
| Model | FSH8 |
|---|
The Rohde & Schwarz FSH8 handheld spectrum analyzer covers 100 kHz–8 GHz with 1 Hz–3 MHz resolution bandwidth, –161 dBm DANL, and optional internal tracking generator & VSWR bridge, all in a rugged, splash‑proof 3 kg portable unit.
It supports RF service tasks like transmitter installation, cable/antenna testing, power measurement, distance‑to‑fault, and TDMA/LTE/WCDMA channel power analysis via intuitive keys and bright color display, with 4.5 h battery runtime.
Testwall offers the used Rohde & Schwarz FSH8 with expert support, flexible global delivery, and its industry‑leading handheld spectrum analyzers ensure reliable field and lab performance unmatched by competitors.
