Rohde & Schwarz
Rohde & Schwarz FSH808
Spectrum Analyser, 9 kHz to 8 GHz with preamplifier
100 kHz to 8 GHz Frequency Range
Up to 100 dB Dynamic Range
6.5-inch color TFT LCD, 640 x 480 pixels Display
Up to 4 hours with standard battery pack Battery Life
Approximately 3.3 kg (7.3 lbs) including battery Weight
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Dynamic Range | Up to 100 dB |
| Display | 6.5-inch color TFT LCD, 640 x 480 pixels |
| Battery Life | Up to 4 hours with standard battery pack |
| Weight | Approximately 3.3 kg (7.3 lbs) including battery |
| Measurement Functions | Spectrum analysis, vector network analysis, power meter, interference analysis |
| Resolution Bandwidth (RBW) | 100 Hz to 3 MHz |
| Spurious-Free Dynamic Range (SFDR) | Typically 70 dBc |
| Interfaces | USB, LAN (Ethernet), Mini USB |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Rohde & Schwarz FSH808 Options:
- FSH808 - FSH-K40 - Remote Control via LAN or USB
- FSH808 - FSH-K41 - Distance-to-Fault Analysis (for models .24 and .28 only, requires R&S FSH-Z320 or R&S FSH-Z321 and R&S FSH-Z28 or R&S FSH-Z29)
- FSH808 - FSH-K42 - Vector Network Analysis (for models .24 and .28 only)
- FSH808 - FSH-K45 - Vector Voltmeter (for models .24 and .28 only)
- FSH808 - FSH-K44 - 3GPP WCDMA BTS/Node B Pilot Channel and EVM Measurement Application
- FSH808 - FSH-K46 - CDMA2000 BTS Pilot Channel and EVM Measurement Application
- FSH808 - FSH-K46E - CDMA2000 BTS Code Domain Power Measurement Application (R&S FSH-K46 required)
| Model | FSH808 |
|---|

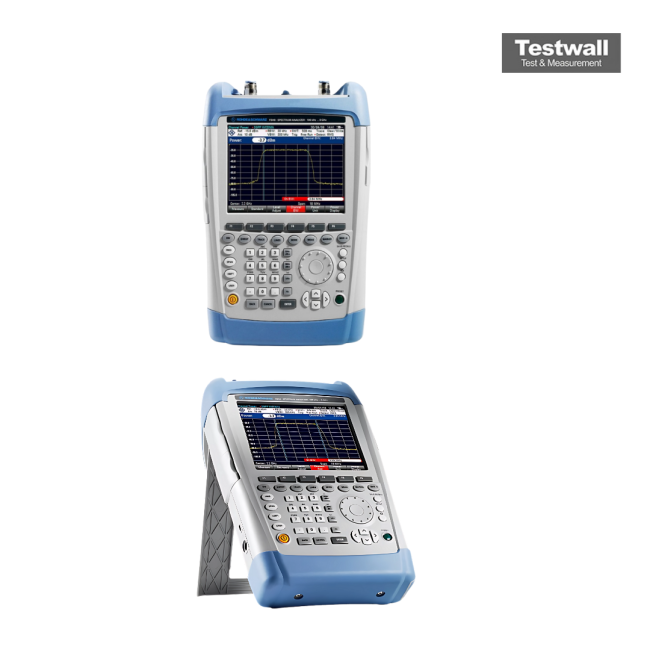

The Rohde and Schwarz FSH8.08 is a versatile handheld spectrum analyzer covering a frequency range of 9 kHz to 8 GHz. This compact unit includes a pre-amplifier and is ideal for RF technicians performing daily measurements in the field.
It’s suited for transmitter maintenance, cable/antenna testing, and signal quality analysis in broadcasting and radio services. Weighs 3 kg and operates up to 4.5 hours on battery.
Testwall can supply the used Rohde and Schwarz FSH8.08, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FSH8.08.
