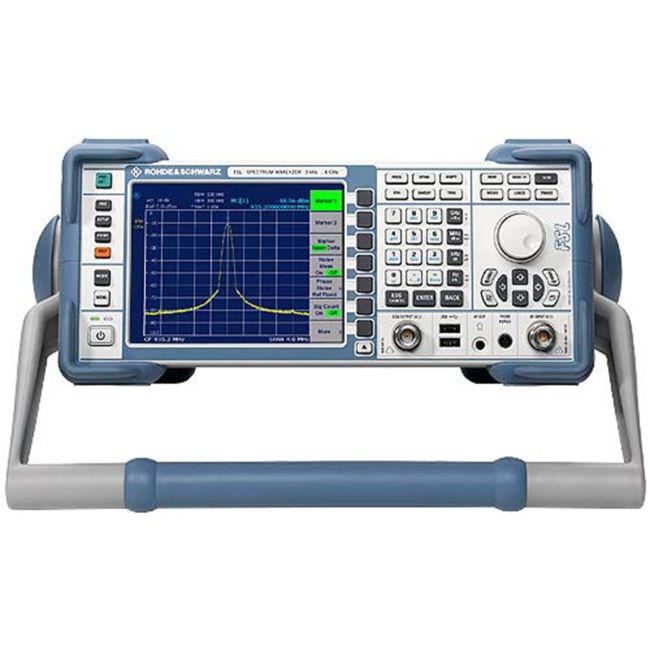

Rohde & Schwarz FSL3-03 3 GHz Spectrum Analyzer, Type N (f)
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Connector Type | Type N (female) |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -148 dBm (typical, 1 Hz RBW) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Sweep Time | 10 ms to 1000 s (span > 0 Hz) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
Rohde & Schwarz FSL3-03 3 GHz Spectrum Analyzer, Type N (f) Options:
- FSL - FSL-B10 - GPIB Interface (Order No. 1300.6208.02)
- FSL - FSL-B22 - RF Amplifier (Order No. 1300.5953.02)
- FSL - FSL-B30 - DC Power Supply (Order No. 1300.6308.02)
- FSL - FSL-B31 - NIMH Battery Pack (Order No. 1300.6408.02)
- FSL - FSL-Z4 - Additional Charger Unit (Order No. 1300.5430.02)
| Model | FSL3-03 |
|---|
The Rohde & Schwarz FSL3-03 Spectrum Analyzer is a compact, lightweight unit offering a frequency range of 9 kHz to 3 GHz and a signal analysis bandwidth of 28 MHz. It includes RBW from 300 Hz to 10 MHz (down to 10 Hz with narrow filters), excellent phase noise of –103 dBc/Hz, and DANL as low as –158 dBm/Hz with preamp. It features TOI of +18 dBm and robust connectivity including LAN, USB, and optional GPIB.
Ideal for development, service, and production testing, the FSL3-03 supports advanced measurements including ACPR, OBW, C/N, CCDF, and more. Optional tracking generator enables scalar network analysis up to 3 GHz.
Testwall can supply the used Rohde & Schwarz FSL3-03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL3-03.
