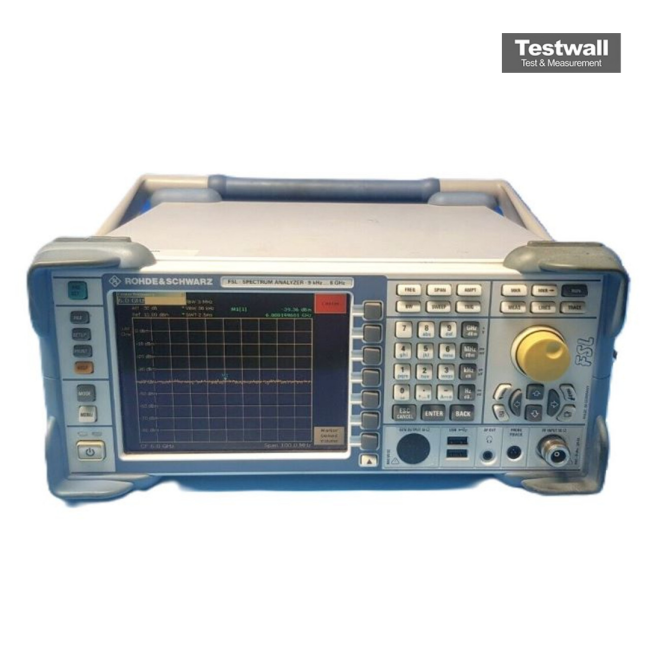

Rohde & Schwarz FSL6 (Model .16)
9KHz - 6GHz Spectrum Analyser
9 kHz to 6 GHz Frequency Range
10 Hz to 3 MHz Resolution Bandwidth
-135 dBm (typical, at 1 GHz, 10 Hz RBW) Display Average Noise Level (DANL)
-98 dBc/Hz (at 10 kHz offset from 1 GHz carrier) Phase Noise
50 Ohm Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Resolution Bandwidth | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | -135 dBm (typical, at 1 GHz, 10 Hz RBW) |
| Phase Noise | -98 dBc/Hz (at 10 kHz offset from 1 GHz carrier) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 100 dB |
| Sweep Time | 10 ms to 1000 s (frequency domain) |
| Display | 10.4-inch color TFT LCD, 800 x 600 pixels |
| Interfaces | USB, LAN (Ethernet), GPIB (optional), RS-232 |
Rohde & Schwarz FSL6 (Model .16) Options:
- FSL6 - B4 - OCXO Reference Frequency, aging 1×10⁻⁷/year
- FSL6 - B5 - Additional Interfaces (video out, IF out, noise source control, AUX port, R&S NRP power sensor)
- FSL6 - B6 - TV Trigger
- FSL6 - B7 - Narrow Resolution Filters
- FSL6 - B8 - Gated Sweep
- FSL6 - B10 - GPIB Interface
- FSL6 - B22 - RF Preamplifier
- FSL6 - B30 - DC Power Supply, 12 V to 28 V
- FSL6 - B31 - NiMH Battery Pack (requires R&S FSL-B30)
- FSL6 - K7 - AM/FM/φM Measurement Demodulator
- FSL6 - K9 - Power Sensor Support (requires R&S FSL-B5 or R&S NRP-Z3/4 and R&S NRP Power Sensor)
- FSL6 - K91 - Transmitter Measurements for WLAN 802.11a, b, g, j
| Model | FSL6 |
|---|
The Rohde & Schwarz FSL6 Model 16 is a compact and lightweight spectrum analyzer designed for cost-effective performance without compromising high-end features. It supports signal analysis up to 18 GHz with a tracking generator and 28 MHz bandwidth capacity.
Ideal for development, service, and production tasks, it excels in handling microwave frequency applications with high reliability and precision.
Testwall can supply the used Rohde & Schwarz FSL6 Model 16, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSL6 Model 16.
