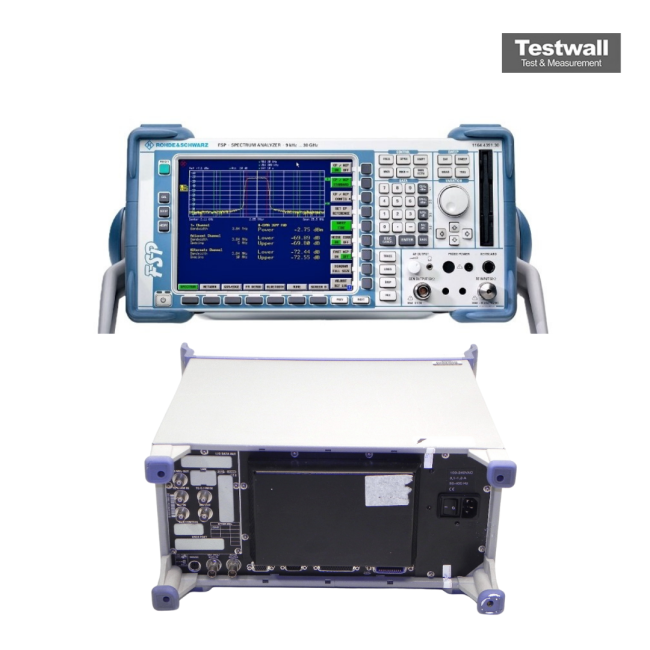

Rohde & Schwarz FSP13 Spectrum Analyser 9 kHz to 13GHz
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 13 GHz |
| Resolution Bandwidth | 10 Hz to 10 MHz |
| Phase Noise | -113 dBc/Hz at 10 kHz offset (typical) |
| Displayed Average Noise Level (DANL) | -155 dBm (typical, with preamplifier enabled) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | >100 dB |
| Level Measurement Uncertainty | <0.5 dB |
| Display | 10.4-inch color TFT LCD |
| Interface Connectivity | GPIB, RS-232, LAN (optional), USB |
| Model | FSP13 |
|---|
The Rohde & Schwarz FSP13 Spectrum Analyzer spans a frequency range from 9kHz to 13.6GHz with a -140dBm noise floor and 0.5dB total measurement uncertainty. It features a 21cm TFT color display, 10Hz–10MHz resolution bandwidths with EMI support, and comprehensive interfaces including GPIB, LAN, and USB. Its digital filters, RMS detector, and statistical functions like CCDF make it ideal for advanced signal analysis.
Suited for high-speed measurement applications, the FSP13 provides up to 100 measurements/s and advanced modes such as ACPR, gated sweep, and list mode for TDMA signal evaluation, ensuring efficient and precise RF testing.
Testwall can supply the used Rohde & Schwarz FSP13 Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSP13 Spectrum Analyzer.
