Rohde & Schwarz FSP40
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 40 GHz |
| Resolution Bandwidth | 10 Hz to 10 MHz |
| Display Average Noise Level | -155 dBm (typical) at 1 GHz, 10 Hz RBW |
| Phase Noise | -106 dBc/Hz at 10 kHz offset from 1 GHz carrier (typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Sweep Time | 2.5 ms to 16000 s (frequency domain) |
| RF Attenuation | 0 to 70 dB in 10 dB steps (optional 5 dB steps) |
| Spurious Response | < -70 dBc (input-related spurious) |
Rohde & Schwarz FSP40 Options:
- FSP40 - B1 - Cabinet for portable use
- FSP40 - B3 - AM/FM audio demodulator
- FSP40 - B4 - OCXO reference frequency
- FSP40 - B6 - TV trigger/RF power trigger
- FSP40 - B9 - Tracking generator
- FSP40 - B10 - External generator control
- FSP40 - B15 - Pulse calibrator
- FSP40 - B16 - LAN interface
- FSP40 - B20 - Extended environmental specification
- FSP40 - B21 - LO/IF ports for external mixers
- FSP40 - B25 - Electronic attenuator
- FSP40 - B28 - Trigger port
- FSP40 - B29 - Frequency range extension 20 Hz
- FSP40 - B30 - DC power supply
- FSP40 - B31/B32 - Battery pack/spare battery pack
- FSP40 - B70 - Demodulation hardware memory extension
- FSP40 - FS-K4 - Phase noise measurements (Windows software)
- FSP40 - FS-K5 - Modulation and spectrum measurements on GSM/EDGE base station and mobile signals
- FSP40 - FS-K7 - AM/FM/φM measurement demodulator for general applications
- FSP40 - FS-K8 - Bluetooth transmitter measurements
- FSP40 - FS-K9 - Power sensor measurements
- FSP40 - FS-K72 - Modulation and code domain power measurements in accordance with 3GPP TS 24.141 on base station signals (Node B)
- FSP40 - FS-K73 - Modulation and code domain power measurements in accordance with 3GPP TS 25.121 on mobile station signals (UE)
- FSP40 - FS-K74 - HSDPA extension for R&S FS-K72
- FSP40 - FS-K76 - Modulation and code domain power measurements on TD-SCDMA base station signals
- FSP40 - FS-K77 - Modulation and code domain power measurements on TD-SCDMA mobile station signals (UE)
- FSP40 - FS-K82 - Modulation and code domain power measurements in accordance with CDMA2000/1xEV-DV on base station signals
- FSP40 - FS-K83 - Modulation and code domain power measurements on CDMA2000/1xEV-DV mobile station signals (UE)
- FSP40 - FS-K84 - Modulation and code domain power measurements on 1xEV-DO base station signals
- FSP40 - FS-K85 - Modulation and code domain power measurements on 1xEV-DO mobile station signals (UE)
- FSP40 - FSP-K90 - WLAN 802.11a Application Firmware
- FSP40 - FS-K30 - Noise figure measurements (application firmware), remote-controllable
| Model | FSP40 |
|---|

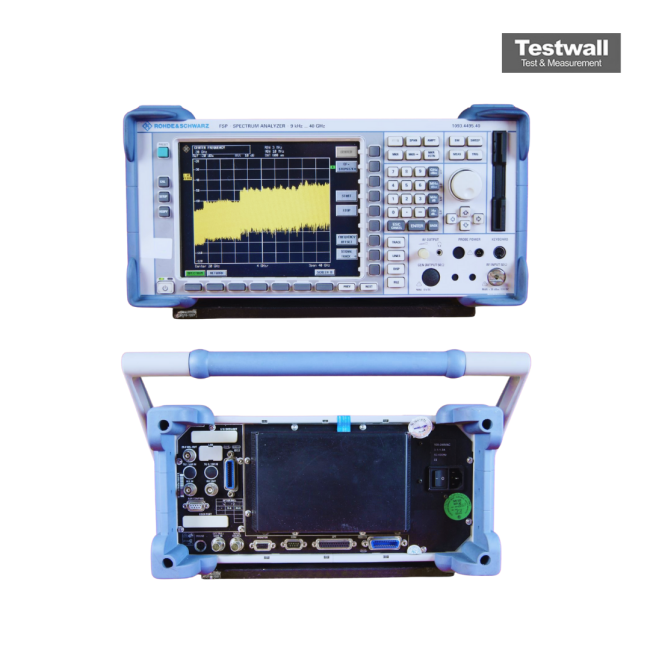

The Rohde & Schwarz FSP40 Spectrum Analyzer covers a frequency range from 9 kHz to 40 GHz, with resolution bandwidths from 1 Hz to 10 MHz and a displayed average noise level of –155 dBm. It features channel filters, FFT filters, EMI bandwidths, quasi‑peak detectors, and comprehensive measurement applications for cellular and general standards.
Supporting various filters and detectors, it includes internal and external trigger functions, GPIB and LAN interfaces, embedded Windows XP, and a 21 cm color SVGA TFT display with split‑screen mode and remote desktop functionality.
Testwall can supply the used ROHDE & SCHWARZ FSP40, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the ROHDE & SCHWARZ FSP40.
