Rohde & Schwarz FSV3030
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 30 GHz |
| Displayed Average Noise Level (DANL) | -170 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -110 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1/2/3/5 steps), up to 40 MHz with digital IF bandwidth |
| Third-Order Intercept Point (TOI) | +20 dBm (typ.) at 1 GHz |
| Maximum Input Power (RF) | +30 dBm (1 W) continuous, DC coupled |
| Measurement Speed (Sweep Time) | 1 ms minimum in swept mode; real-time bandwidth up to 40 MHz with optional real-time spectrum analysis |
| Input Impedance | 50 Ohm (nominal), N-type female connector |
| Dynamic Range | Up to 110 dB (typ.) spurious-free dynamic range |
| Display / Interface | 12.1-inch XGA touchscreen display; LAN (1 Gbit), USB, GPIB (optional) connectivity |
Rohde & Schwarz FSV3030 Options:
- FSV3030 - FSV3-B1 - Side carry handles
- FSV3030 - FSV3-B3 - Audio demodulator
- FSV3030 - FSV3-B4 - OCXO frequency reference
- FSV3030 - FSV3-B5 - Additional interfaces (IF out, video out (2 × BNC), trigger out, aux port, aux control, GPIB)
- FSV3030 - FSV3-B6 - 10 Gbit/s LAN interface (for fast remote control and fast I/Q data transfer)
- FSV3030 - FSV3-B10 - External generator control (LAN based, user-retrofittable (license key), R&S FSV3-B5 is recommended for high sweep speed)
- FSV3030 - FSV3-B11 - YIG preselector bypass (user-retrofittable (license key))
- FSV3030 - FSV3-B40 - 40 MHz analysis bandwidth (user-retrofittable (license key))
- FSV3030 - FSV3-B200 - 200 MHz analysis bandwidth (for frequencies > 7.5 GHz, R&S FSV3-B11 is required)
- FSV3030 - FSV3-B18 - Spare hard drive (requires R&S FSV3-B20, user-retrofittable)
- FSV3030 - FSV3-B20 - Removable hard drive (at front panel)
- FSV3030 - FSV3-B24 - RF preamplifier for R&S FSV3030
- FSV3030 - FSV3-B25 - Electronic attenuator, 1 dB steps (user-retrofittable (license key))
- FSV3030 - FSV3-B33 - USB mass memory write protection
- FSV3030 - FSV3-B114 - Enhanced computing power
- FSV3030 - FSV3-B28V - Noise source control via BNC
- FSV3030 - FSV3-K703 - 1 GHz reference (user-retrofittable (license key))
- FSV3030 - FSV3-K6 - Pulse measurements
- FSV3030 - FSV3-K7 - Analog modulation analysis for AM/FM/φM
- FSV3030 - FSV3-K9 - Power sensor support
- FSV3030 - FSV3-K10 - GSM/EDGE/EDGE Evolution/VAMOS measurements
- FSV3030 - FSV3-K18 - Amplifier measurements
- FSV3030 - FSV3-K18D - Direct DPD measurements (R&S FSV3-K18 option required)
- FSV3030 - FSV3-K18F - Frequency response and group delay measurements (R&S FSV3-K18 option required)
- FSV3030 - FSV3-K30 - Noise figure measurements (for legacy noise sources R&S FSV3-B28V option is required)
- FSV3030 - FSV3-K33 - Security write protection of solid state drive
- FSV3030 - FSV3-K40 - Phase noise measurements
- FSV3030 - FSV3-K70 - Vector signal analysis
- FSV3030 - FSV3-K70M - Multi-modulation analysis (R&S FSV3-K70 option required)
- FSV3030 - FSV3-K70P - BER PRBS measurements (R&S FSV3-K70 option required)
- FSV3030 - FSV3-K72 - 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+)
- FSV3030 - FSV3-K73 - 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
- FSV3030 - FSV3-K91 - WLAN 802.11a/b/g measurements
- FSV3030 - FSV3-K91N - WLAN 802.11n measurements (R&S FSV3-K91 option required)
- FSV3030 - FSV3-K91AC - WLAN 802.11ac measurements
- FSV3030 - FSV3-K91AX - WLAN 802.11ax measurements
- FSV3030 - FSV3-K91P - WLAN 802.11p measurements
- FSV3030 - FSV3-K100 - EUTRA/LTE FDD BS measurements
- FSV3030 - FSV3-K101 - EUTRA/LTE FDD UE measurements
- FSV3030 - FSV3-K102 - EUTRA/LTE BS MIMO measurements (R&S FSV3-K100 or R&S FSV3-K104 option required)
- FSV3030 - FSV3-K103 - EUTRA/LTE UL advanced UL measurements (R&S FSV3-K101 or R&S FSV3-K105 option required)
- FSV3030 - FSV3-K104 - EUTRA/LTE TDD BS measurements
- FSV3030 - FSV3-K105 - EUTRA/LTE TDD uplink measurements
- FSV3030 - FSV3-K106 - EUTRA/LTE NB-IoT downlink measurements
- FSV3030 - FSV3-K144 - 3GPP 5G-NR DL measurements
- FSV3030 - FSV3-K145 - 3GPP 5G-NR UL measurements
- FSV3030 - FSV3-K544 - User defined frequency correction by SnP file (corrects frequency response (amplitude and phase) of measurement setup)
| Model | FSV3030 |
|---|

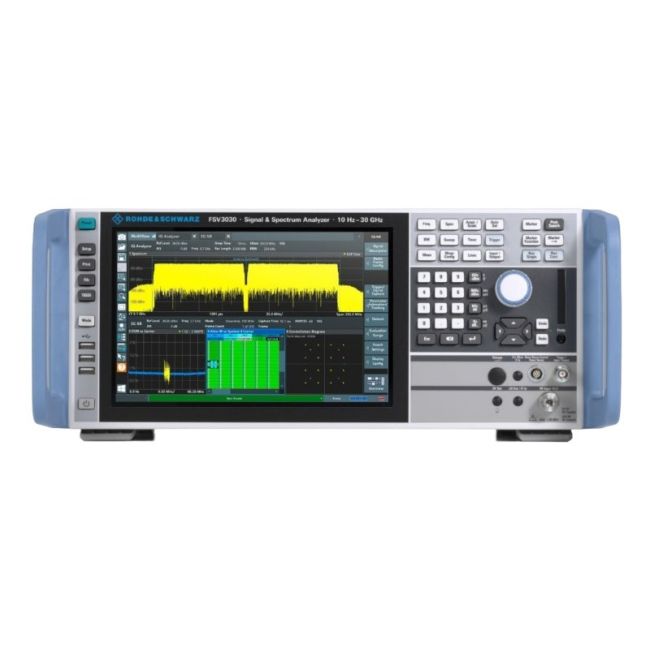

ROHDE & SCHWARZ FSV3030 Signal and Spectrum Analyzer
The Rohde & Schwarz FSV3030 Signal and Spectrum Analyzer features functions that make complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. The Rohde & Schwarz FSV3030 has been designed for high-speed measurements. Production lines benefit from fast measurement times for spectral measurements, highspeed signal demodulation and rapid switching between diffe measurement modes.
With 200 MHz of analysis bandwidth, the Rohde & Schwarz FSV3030 is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. It allows capturing of two neighboring 5G NR carriers at once. This saves measurement time and makes it possible to analyze interactions and timing between the carriers. With the optional YIG bypass, the 200 MHz bandwidth is available up to the maximum frequency. The FSV3030 features an excellent dynamic range, which is beneficial not only for spectral measurements but also for analyzing and demodulating signals with a high crest factor, such as OFDM signals or signals with a high modulation order. Excellent EVM values better than 1% are possible with 160 MHz wide WLAN signals and also for 5G NR signals.
Specifications for the ROHDE & SCHWARZ FSV3030 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 30 GHz |
| Bandwidth | 28 MHz (Up to 200 MHz) |
| Displayed average noise level (DANL) | €“151 dBm (typ.) |
| Total measurement uncertainty | 0.29 dB |
