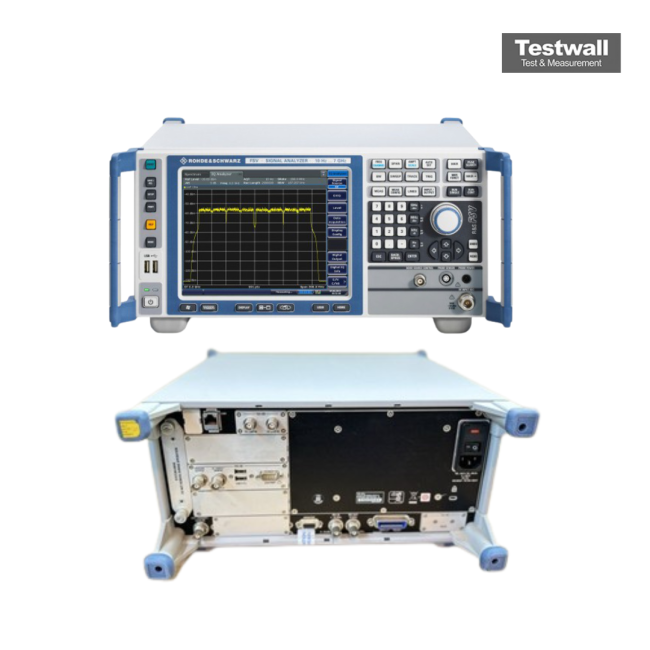

Rohde & Schwarz FSV40
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 40 GHz |
| Display Average Noise Level (DANL) | -155 dBm (typical, at 1 GHz, preamp on) |
| Phase Noise | -98 dBc/Hz (at 1 GHz, 10 kHz offset, typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power (RF) | +30 dBm (continuous) |
| Third-Order Intercept Point (TOI) | +20 dBm (typical, at 1 GHz) |
| Amplitude Measurement Range | -155 dBm to +30 dBm |
| Input Impedance | 50 Ohm |
| Sweep Time | 1 ms to 16000 s (span > 0) |
| RF Input Connector | 2.92 mm (K) female connector |
Rohde & Schwarz FSV40 Options:
- FSW - B4 - OCXO Precision Frequency Reference
- FSW - B8 - Resolution Bandwidth > 10 MHz
- FSW - B10 - External Generator Control
- FSW - B13 - Highpass Filter for Harmonic Measurements
- FSW - B17 - Digital Baseband Interface
- FSW - B18 - Spare Solid State Drive (removable hard drive)
- FSW - B21 - LO/IF Connections for external mixers
- FSW - B24 - RF Preamplifier, 100 kHz to 13.6 GHz
- FSW - B24 - RF Preamplifier, 100 kHz to 26.5 GHz
- FSW - B24 - RF Preamplifier, 100 kHz to 43.5 GHz
- FSW - B24 - RF Preamplifier, 100 kHz to 50 GHz
- FSW - B24 - RF Preamplifier, 100 kHz to 67 GHz
- FSW - B25 - Electronic Attenuator, 1 dB steps
- FSW - B28 - 28 MHz Analysis Bandwidth
- FSW - B33 - USB Mass Memory Write Protection
- FSW - B40 - 40 MHz Analysis Bandwidth
- FSW - B71 - Analog Baseband Inputs, 40 MHz Analysis Bandwidth
- FSW - B71E - 80 MHz Analysis Bandwidth for Analog Baseband Inputs
- FSW - B80 - 80 MHz Analysis Bandwidth
- FSW - B160 - 160 MHz Analysis Bandwidth
- FSW - B160R - Real-Time Spectrum Analyzer 160 MHz, POI ≤ 15 µs
- FSW - B320 - 320 MHz Analysis Bandwidth
- FSW - B500 - 500 MHz Analysis Bandwidth
- FSW - B2000 - 2 GHz Analysis Bandwidth
- FSW - K6 - Pulse Measurements
- FSW - K6S - Time Side Lobe Measurement
- FSW - K7 - Analog Modulation Analysis for AM/FM/φM
- FSW - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FSW - K17 - Multicarrier Group Delay Measurements
- FSW - K18 - Amplifier Measurements
- FSW - K30 - Noise Figure Measurements
- FSW - K33 - Security Write Protection of solid state drive
- FSW - K40 - Phase Noise Measurements
- FSW - K54 - EMI Measurements
- FSW - K60 - Transient Measurement Application
- FSW - K60H - Transient Hop Measurement
- FSW - K60C - Transient Chirp Measurement
- FSW - K70 - Vector Signal Analysis
- FSW - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FSW - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FSW - K76 - TD-SCDMA BS Measurements
- FSW - K77 - TD-SCDMA UE Measurements
- FSW - K82 - CDMA2000 BS Measurements
- FSW - K83 - CDMA2000 MS Measurements
- FSW - K84 - 1xEV-DO BS Measurements
- FSW - K85 - 1xEV-DO MS Measurements
- FSW - K91 - IEEE802.11a/b/g Measurements
- FSW - K91N - IEEE802.11n Measurements
- FSW - K91AC - IEEE802.11ac Measurements
- FSW - K91P - IEEE802.11p Measurements
- FSW - K100 - EUTRA/LTE FDD BS Measurements
- FSW - K101 - EUTRA/LTE TDD UE Measurements
- FSW - K102 - EUTRA/LTE BS MIMO Measurements
- FSW - K103 - EUTRA/LTE UL Advanced UL Measurements
- FSW - K104 - EUTRA/LTE TDD BS Measurements
- FSW - K105 - EUTRA/LTE TDD Uplink Measurements
- FSW - K192 - DOCSIS 3.1 OFDM Downstream
- FSW - K160RE - 160 MHz Real-Time Measurement Application, POI > 15 µs
| Model | FSV40 |
|---|
The Rohde & Schwarz FSV40 Signal and Spectrum Analyzer offers a frequency range up to 40 GHz and supports up to 160 MHz signal analysis bandwidth (optional), ideal for high-speed RF development and production. It delivers 0.4 dB level measurement uncertainty and –110 dBc (1 Hz) phase noise at 10 kHz offset, with advanced support for wireless standards such as LTE, WCDMA, and WLAN.
Optimized for production speed, the FSV40 is five times faster than competitors, features a touchscreen interface, low weight, and supports removable hard drives for enhanced security in field applications.
Testwall can supply the used Rohde & Schwarz FSV40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSV40.
