Rohde & Schwarz FSVA3013
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 13.6 GHz |
| Displayed Average Noise Level (DANL) | -165 dBm (typ.) with preamplifier enabled |
| Phase Noise | -114 dBc/Hz at 10 kHz offset (1 GHz carrier, typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1/2/3/5 steps) |
| Third-Order Intercept Point (TOI) | +20 dBm (typ.) at 1 GHz |
| Maximum Input Power | +30 dBm (1 W) continuous, DC 50 V max |
| Preamplifier | Built-in low-noise preamplifier, switchable |
| Analysis Bandwidth | Up to 160 MHz (with optional hardware) |
| Display | 12.1-inch XGA touchscreen (1024 x 768 resolution) |
| Interfaces / Connectivity | USB, LAN (1000BASE-T), HDMI, optional GPIB |
Rohde & Schwarz FSVA3013 Options:
- FSVA3013 - FSV3-B1 - Side carry handles
- FSVA3013 - FSV3-B3 - Audio demodulator
- FSVA3013 - FSV3-B4 - OCXO frequency reference
- FSVA3013 - FSV3-B5 - Additional interfaces (IF out, video out (2 × BNC), trigger out, aux port, aux control, GPIB)
- FSVA3013 - FSV3-B6 - 10 Gbit/s LAN interface (for fast remote control and fast I/Q data transfer)
- FSVA3013 - FSV3-B10 - External generator control (LAN based, user-retrofittable)
- FSVA3013 - FSV3-B11 - YIG preselector bypass (user-retrofittable license key)
- FSVA3013 - FSV3-B40 - 40 MHz analysis bandwidth (user-retrofittable license key)
- FSVA3013 - FSV3-B200 - 200 MHz analysis bandwidth
- FSVA3013 - FSV3-B400 - 400 MHz analysis bandwidth
- FSVA3013 - FSV3-U400 - Upgrade from 200 MHz to 400 MHz analysis bandwidth (user-retrofittable license key)
- FSVA3013 - FSV3-B18 - Spare hard drive
- FSVA3013 - FSV3-B20 - Removable hard drive (at front panel)
- FSVA3013 - FSV3-B24 - RF preamplifier (10 MHz to 13.6 GHz)
- FSVA3013 - FSV3-B25 - Electronic attenuator, 1 dB steps (user-retrofittable license key)
- FSVA3013 - FSV3-B33 - USB mass memory write protection
- FSVA3013 - FSV3-B114 - Enhanced computing power
- FSVA3013 - FSV3-B28V - Noise source control via BNC
- FSVA3013 - FSV3-K703 - 1 GHz reference (user-retrofittable license key)
- FSVA3013 - FSV3-K6 - Pulse measurements
- FSVA3013 - FSV3-K7 - Analog modulation analysis for AM/FM/φM
- FSVA3013 - FSV3-K9 - Power sensor support
- FSVA3013 - FSV3-K10 - GSM/EDGE/EDGE evolution/VAMOS measurements
- FSVA3013 - FSV3-K18 - Amplifier measurements
- FSVA3013 - FSV3-K18D - Direct DPD measurements (requires FSV3-K18)
- FSVA3013 - FSV3-K18F - Frequency response and group delay measurements (requires FSV3-K18)
- FSVA3013 - FSV3-K30 - Noise figure measurements
- FSVA3013 - FSV3-K33 - Security write protection of solid state drive
- FSVA3013 - FSV3-K40 - Phase noise measurements
- FSVA3013 - FSV3-K70 - Vector signal analysis
- FSVA3013 - FSV3-K70M - Multi-modulation analysis (requires FSV3-K70)
- FSVA3013 - FSV3-K70P - BER PRBS measurements (requires FSV3-K70)
- FSVA3013 - FSV3-K72 - 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+)
- FSVA3013 - FSV3-K73 - 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+)
- FSVA3013 - FSV3-K91 - WLAN 802.11a/b/g measurements
- FSVA3013 - FSV3-K91N - WLAN 802.11n measurements (requires FSV3-K91)
- FSVA3013 - FSV3-K91AC - WLAN 802.11ac measurements
- FSVA3013 - FSV3-K91AX - WLAN 802.11ax measurements
- FSVA3013 - FSV3-K91P - WLAN 802.11p measurements
- FSVA3013 - FSV3-K100 - EUTRA/LTE FDD BS measurements
- FSVA3013 - FSV3-K101 - EUTRA/LTE FDD UE measurements
- FSVA3013 - FSV3-K102 - EUTRA/LTE BS MIMO measurements (requires FSV3-K100 or FSV3-K104)
- FSVA3013 - FSV3-K103 - EUTRA/LTE UL advanced UL measurements (requires FSV3-K101 or FSV3-K105)
- FSVA3013 - FSV3-K104 - EUTRA/LTE TDD BS measurements
- FSVA3013 - FSV3-K105 - EUTRA/LTE TDD uplink measurements
- FSVA3013 - FSV3-K106 - EUTRA/LTE NB-IoT downlink measurements
- FSVA3013 - FSV3-K144 - 3GPP 5G-NR DL measurements
- FSVA3013 - FSV3-K145 - 3GPP 5G-NR UL measurements
- FSVA3013 - FSV3-K544 - User defined frequency correction by SnP file
| Model | FSVA3013 |
|---|

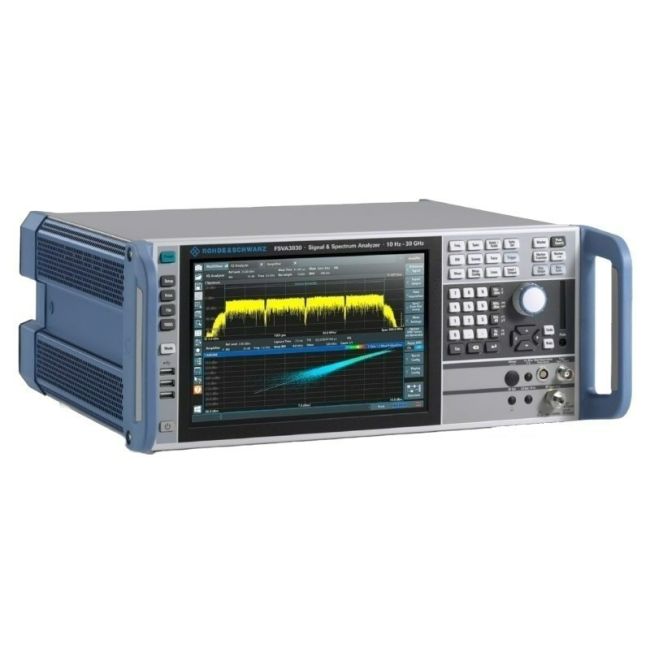

ROHDE & SCHWARZ FSVA3013 Signal and Spectrum Analyzer
The Rohde & Schwarz FSVA3013 delivers a performance level that until recently was reserved for high-end instruments. It is equally suitable for analyzing frequency agile signals and wideband signals as for linearizing power amplifiers. It supports all modern cellular and wireless standards; its frequency ranges and bandwidth options are a perfect match for 5G NR. It provides high throughput and yield in the production of cellular base stations and components and is equally suitable for development and verification labs. The FSVA3013 features functions and wizards, which makes complex user measurement scenarios fast and easy.
With an analysis bandwidth of up to 400 MHz, an outstanding phase noise of €“120 dBc (1 Hz) at 10 kHz offset and a high dynamic range: the Rohde & Schwarz FSVA3013 signal and spectrum analyzer has everything needed to keep up with demanding measurement applications. Setting up RF parameters with touchscreen gestures is easy. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. And event based actions support you when debugging your DUT by capturing and documenting rare events. With its high measurement speed and easy usability, it is the right instrument for demanding signal analysis tasks both in the lab and on a production line.
Specifications for the ROHDE & SCHWARZ FSVA3013 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 13.6 GHz |
| I/Q demodulation bandwidth | 28 MHz std (up to 400 MHz) |
| Channel Filter | 100 Hz to 5 MHz |
| Video Filter | 1 Hz to 10 MHz |
