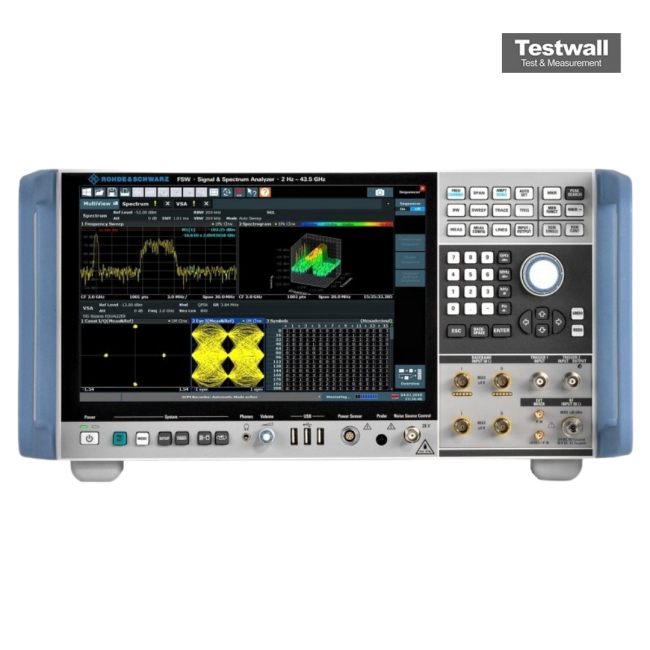

Rohde & Schwarz FSW50 50 GHz Signal Analyzer, 1.85 mm (m)
50 GHz Signal Analyzer
2 Hz to 50 GHz Frequency Range
1.85 mm (male) Connector Type
-164 dBm (typical, 1 Hz bandwidth) Display Average Noise Level (DANL)
-139 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) Phase Noise
1 Hz to 50 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 50 GHz |
| Connector Type | 1.85 mm (male) |
| Display Average Noise Level (DANL) | -164 dBm (typical, 1 Hz bandwidth) |
| Phase Noise | -139 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power | +30 dBm |
| Input Impedance | 50 Ohm |
| Third-Order Intercept Point (TOI) | +22 dBm (typical) |
| Analysis Bandwidth | Up to 2 GHz (with optional hardware) |
| Dynamic Range | >110 dB |
Rohde & Schwarz FSW50 50 GHz Signal Analyzer, 1.85 mm (m) Options:
- FSW50 - B4 - OCXO Precision Reference Frequency
- FSW50 - B8 - Resolution Bandwidths > 10 MHz (for R&S®FSW43/50/67/85)
- FSW50 - B10 - External Generator Control
- FSW50 - B13 - Highpass Filters for Harmonic Measurements
- FSW50 - B17 - Digital Baseband Interface
- FSW50 - B71 - Analog Baseband Inputs (for R&S®FSW26/43/50)
- FSW50 - B71E - 80 MHz Bandwidth for Analog Baseband Inputs
- FSW50 - B18 - Spare Solid State Disk (removable hard drive)
- FSW50 - B21 - LO/IF Ports for External Mixers (for R&S®FSW43/50/67)
- FSW50 - B24 - Preamplifier, 100 kHz to 50 GHz (for R&S®FSW50)
- FSW50 - B25 - Electronic Attenuator, 1 dB steps
- FSW50 - B33 - USB Mass Memory Write Protection
- FSW50 - B160R - Real-Time Spectrum Analyzer, 160 MHz
- FSW50 - B28 - 28 MHz Analysis Bandwidth
- FSW50 - B40 - 40 MHz Analysis Bandwidth
- FSW50 - B80 - 80 MHz Analysis Bandwidth
- FSW50 - B160 - 160 MHz Analysis Bandwidth
- FSW50 - B320 - 320 MHz Analysis Bandwidth
- FSW50 - B500 - 500 MHz Analysis Bandwidth
- FSW50 - B2000 - 2 GHz Analysis Bandwidth
- FSW50 - K6 - Pulse Measurements
- FSW50 - K6S - Time Side Lobe Measurement
- FSW50 - K7 - Analog Modulation Analysis AM/FM/φM
- FSW50 - K10 - GSM, EDGE, EDGE Evolution and VAMOS Measurements
- FSW50 - K17 - Multicarrier Group Delay Measurements
- FSW50 - K18 - Amplifier Measurements
- FSW50 - K30 - Noise Figure Measurements
- FSW50 - K33 - Security Write Protection of solid state drive
- FSW50 - K40 - Phase Noise Measurements
- FSW50 - K54 - EMI Measurements
- FSW50 - K60 - Transient Measurement Application
- FSW50 - K60C - Transient Chirp Measurement
- FSW50 - K60H - Transient Hop Measurement
- FSW50 - K70 - Vector Signal Analysis
- FSW50 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FSW50 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FSW50 - K76 - 3GPP TDD (TD-SCDMA) BS Measurements
- FSW50 - K77 - 3GPP TDD (TD-SCDMA) UE Measurements
- FSW50 - K82 - CDMA2000® BS Measurements
- FSW50 - K83 - CDMA2000® MS Measurements
- FSW50 - K84 - 1xEV-DO BS Measurements
- FSW50 - K85 - 1xEV-DO MS Measurements
- FSW50 - K91 - IEEE802.11a/b/g Measurements
- FSW50 - K91P - IEEE802.11p Measurements
- FSW50 - K91N - IEEE802.11n Measurements
- FSW50 - K91AC - IEEE802.11ac Measurements
- FSW50 - K95 - IEEE802.11ad Measurements
- FSW50 - K100 - EUTRA/LTE FDD BS Measurements
- FSW50 - K101 - EUTRA/LTE FDD UE Measurements
- FSW50 - K102 - EUTRA/LTE BS MIMO Measurements
- FSW50 - K103 - EUTRA/LTE UL Advanced UL Measurements
- FSW50 - K104 - EUTRA/LTE TDD BS Measurements
- FSW50 - K105 - EUTRA/LTE TDD UE Measurements
- FSW50 - K160RE - 160 MHz Real-Time Measurement Application POI > 15 µs
- FSW50 - K192 - DOCSIS 3.1 OFDM Downstream
- FSW50 - K193 - DOCSIS 3.1 OFDM Upstream
- FSW50 - U40 - Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
- FSW50 - U80 - Analysis Bandwidth Upgrade from 40 MHz to 80 MHz
- FSW50 - U160 - Analysis Bandwidth Upgrade from 80 MHz to 160 MHz
- FSW50 - U160R - Real-Time Spectrum Analyzer, includes analysis bandwidth upgrade from 80 MHz to 160 MHz
- FSW50 - U320 - Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
- FSW50 - U500 - Analysis Bandwidth Upgrade from 80 MHz to 500 MHz
| Model | FSW50 |
|---|
The FSW50 is a 50 GHz Spectrum Analyzer, manufactured by Rohde & Schwarz. Rohde & Schwarz specializes in the manufacture of test and measurement equipment for radio communications. Some of the key features of the FSW50 include:
- Frequency range from 2 Hz to 50 GHz
- Low phase noise of -137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- -88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
- Up to 2 GHz analysis bandwidth
- < 0.4 dB total measurement uncertainty up to 8 GHz
- Real-time analysis up to 160 MHz bandwidth
- High-resolution 12.1%22 (31 cm) touchscreen for convenient operation
- Multiple measurement applications can be run and displayed in parallel
At Testwall, we offer the Rohde & Schwarz's FSW50 Spectrum Analyzer for rent or for lease, with technical support. In addition, our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Contact us to request a quote today.
