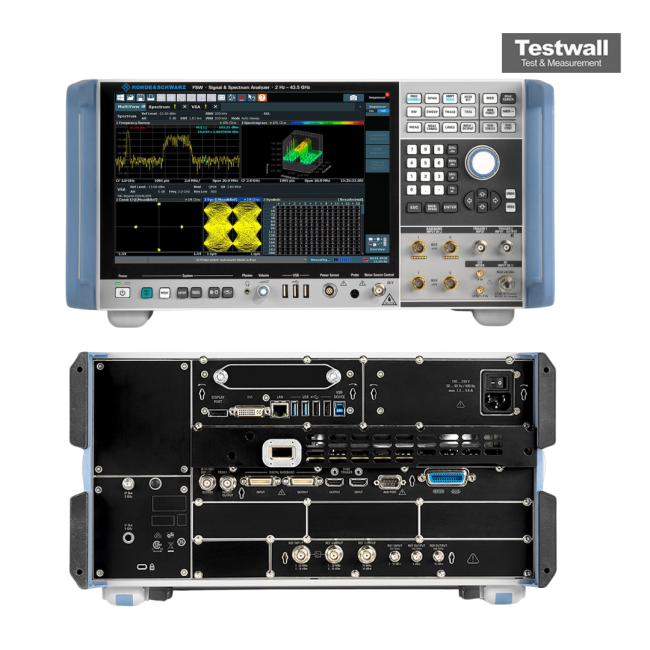

Rohde & Schwarz FSW8 8 GHz Signal Analyzer, Type N (f)
8 GHz Signal Analyzer
2 Hz to 8 GHz Frequency Range
Type N (female) RF Input Connector
-174 dBm/Hz (typical, with preamplifier) Display Average Noise Level (DANL)
-142 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) Phase Noise
Up to 8.3 GHz (internal), expandable with options Analysis Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 8 GHz |
| RF Input Connector | Type N (female) |
| Display Average Noise Level (DANL) | -174 dBm/Hz (typical, with preamplifier) |
| Phase Noise | -142 dBc/Hz at 10 kHz offset (typical, at 1 GHz carrier) |
| Analysis Bandwidth | Up to 8.3 GHz (internal), expandable with options |
| Input Impedance | 50 Ohm |
| Maximum Input Level | +30 dBm (1 W) |
| Third-Order Intercept (TOI) | +20 dBm (typical, at 1 GHz) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Real-Time Analysis Bandwidth | Up to 160 MHz (with R&S FSW-B160 option) |
| Model | FSW8 |
|---|
The Rohde & Schwarz FSW8 is a Signal and Spectrum analyzer. The R&S FSW8 comes with a frequency range of 2 Hz to 26.5 GHz, low phase noise of -153 dBm to 30 dBm, Resolution bandwidth 1 Hz to 10 MHz. The high-performance R&S FSW8 signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.
Here is the extended features list of the Rohde & Schwarz FSW8:
- Frequency range from 2 Hz to 8 GHz/13.6 GHz/26.5 GHz
- Low phase noise of ?137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- ?88 dB dynamic range (with noise cancellation) for WCDMA ACLR measurements
- Up to 160 MHz analysis bandwidth
- 0.4 dB total measurement uncertainty up to 8 GHz
- High-resolution 12.1%22 (31 cm) touchscreen for convenient operation
- Multiple measurement applications can be run and displayed in parallel
If you are looking for a new or well-maintained used Rhode & Schwarz - FSW8 Spectrum Analyzer for rent, contact us or request a quote today.
