Rohde & Schwarz

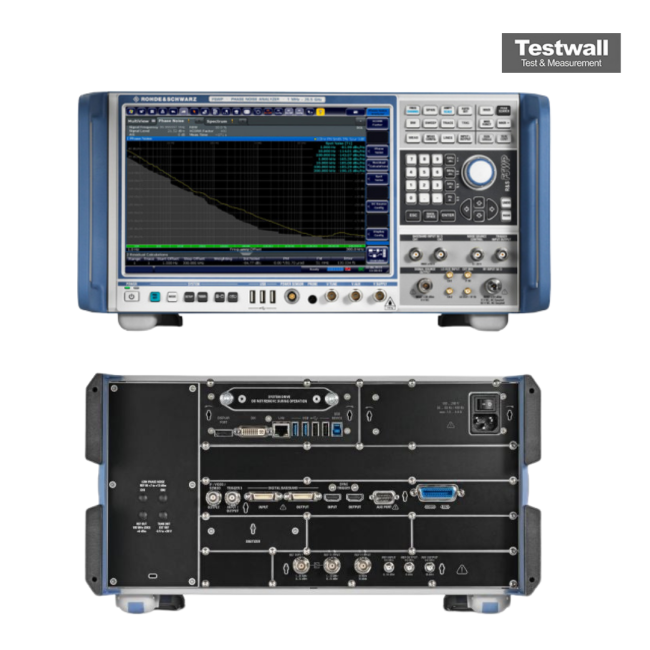

Rohde & Schwarz FSWP8
Analyseur de bruit de phase 8 GHz et testeur VCO, type N (f)
1 MHz to 8 GHz Frequency Range
Up to -174 dBc/Hz Phase Noise Measurement Range
-120 dBc/Hz at 1 kHz offset (at 1 GHz carrier) Residual Phase Noise Floor
Yes, built-in cross-correlation to improve noise floor by up to 20 dB Cross-Correlation
Integrated real-time spectrum analyzer capability Spectrum Analyzer Functionality
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 8 GHz |
| Phase Noise Measurement Range | Up to -174 dBc/Hz |
| Residual Phase Noise Floor | -120 dBc/Hz at 1 kHz offset (at 1 GHz carrier) |
| Cross-Correlation | Yes, built-in cross-correlation to improve noise floor by up to 20 dB |
| Spectrum Analyzer Functionality | Integrated real-time spectrum analyzer capability |
| Display | 12.1-inch XGA touchscreen display |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Spurious Signal Measurement | Integrated VCO/oscillator characterization and spurious detection |
| Connectivity & Interfaces | LAN (Ethernet), USB, GPIB (optional), HDMI |
Rohde & Schwarz FSWP8 Options:
- FSWP8 - B60 - Cross-Correlation, 8 GHz
- FSWP8 - B61 - Cross-Correlation (low phase noise), 8 GHz (includes R&S FSWP-B4)
- FSWP8 - B64 - Additive Phase Noise Measurements (frequency range 10 MHz to 8 GHz)
- FSWP8 - B4 - High Stability OCXO
- FSWP8 - B1 - Spectrum Analyzer, 10 Hz to 8 GHz
- FSWP8 - B10 - External Generator Control
- FSWP8 - B8 - Resolution Bandwidth > 10 MHz
- FSWP8 - B13 - Highpass Filter for Harmonic Measurements (requires R&S FSWP-B1 option)
- FSWP8 - B24 - RF Preamplifier, 100 kHz to 8 GHz (requires R&S FSWP-B1 option)
- FSWP8 - B80 - 80 MHz Analysis Bandwidth (requires R&S FSWP-B1 option)
- FSWP8 - B320 - 320 MHz Analysis Bandwidth (requires R&S FSWP-B1 option)
- FSWP8 - B18 - Spare Solid State Drive (removable hard drive)
- FSWP8 - K4 - Pulsed Phase Noise Measurements
- FSWP8 - K6 - Pulse Measurement Application (requires R&S FSWP-B1 option)
- FSWP8 - K6S - Time Sidelobe Measurements (requires R&S FSWP-K6 option)
- FSWP8 - K7 - Analog Modulation Analysis for AM/FM/φM (requires R&S FSWP-B1 option)
- FSWP8 - K30 - Noise Figure Measurements (requires R&S FSWP-B1 option)
- FSWP8 - K33 - Security Write Protection of solid state drive
- FSWP8 - K70 - Vector Signal Analysis (requires R&S FSWP-B1 option)
| Model | FSWP8 |
|---|
The Rohde & Schwarz FSWP8 is a Phase Noise Analyzer and VCO Tester that offers a frequency range of up to 8 GHz. The FSWP8 comes with the brand's cross-correlation technology and low-noise internal sources in order to offer high sensitivity for phase noise measurements.
Key facts of the R&S FSWP8:
- Frequency range from 1 MHz to?8 GHz
- High sensitivity for phase noise measurements thanks to cross-correlation and extremely low-noise internal reference sources
- typ. -172 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
- typ. -158 dBc (1 Hz) at 10 GHz carrier frequency and 10 kHz offset
- Simultaneous measurement of amplitude noise and phase noise
- Measurement of phase noise on pulsed sources at the push of a button
- Internal source for measuring additive phase noise, including on pulsed signals
- Signal and spectrum analyzer and phase noise analyzer in a single box
- High-end signal and spectrum analyzer, 10 Hz to?8 GHz
- Wide dynamic range thanks to low displayed average noise level (DANL) of -156 dBm (1 Hz) (without noise cancellation) and high TOI of typ. 25 dBm
- 320? MHz signal analysis bandwidth
- Total measurement uncertainty: < 0.2 dB up to 3.6 GHz,< 0.3 dB up to 8 GHz
- Touchscreen operation
- Large 12.1%22 display for simultaneous viewing of multiple measurement windows
- Various measurement applications can be run and displayed in parallel
- High measurement speed
- Low-noise internal DC sources for VCO characterization
- Automatic VCO characterization
- Analysis of up to 8 GHz wide frequency hops (transients)
