Rohde & Schwarz

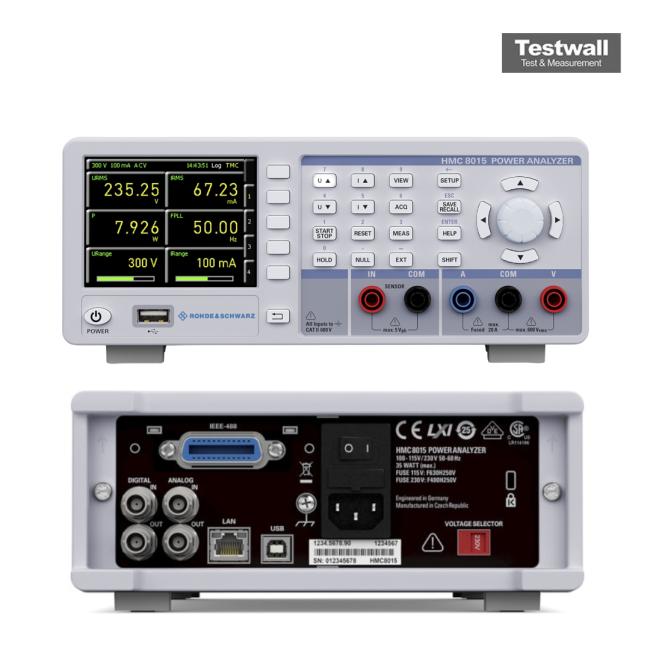

Rohde & Schwarz HMC8015
DC To 100 kHz Power Analyzer
5 mV to 600 V (DC and AC RMS) Voltage Measurement Range
1 mA to 20 A (DC and AC RMS) Current Measurement Range
Up to 12 kW (with external current sensor) Power Measurement Range
DC, 15 Hz to 1 MHz Frequency Range
0.05% (voltage and current) Basic Accuracy
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 5 mV to 600 V (DC and AC RMS) |
| Current Measurement Range | 1 mA to 20 A (DC and AC RMS) |
| Power Measurement Range | Up to 12 kW (with external current sensor) |
| Frequency Range | DC, 15 Hz to 1 MHz |
| Basic Accuracy | 0.05% (voltage and current) |
| Display | 4.3-inch color TFT LCD display |
| Interfaces | USB (device and host), LAN (LXI), optional RS-232 |
| Data Logging | Internal memory and USB flash drive storage support |
| Measured Parameters | Voltage, Current, Active Power, Apparent Power, Reactive Power, Power Factor, Frequency, Phase Angle |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz HMC8015 DC To 100 kHz Power Analyzer Options:
- HMC8015 - HOC151 - Advanced Analysis
| Model | HMC8015 |
|---|
The Rohde & Schwarz HMC8015 Power Analyzer enables single-phase AC and DC measurements with high precision, offering a power range from 50 µW to 12 kW and analog bandwidth of DC to 100 kHz
Equipped with 16-bit resolution, it graphically presents harmonic analysis up to the 50th harmonic, providing deep electrical insight for demanding applications
Testwall can supply the used Rohde & Schwarz HMC8015, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Rohde & Schwarz HMC8015
.
