Rohde & Schwarz HMC8043-G Power Supply
| Attribute | Value |
|---|---|
| Number of Channels | 3 |
| Maximum Output Voltage | 32 V per channel |
| Maximum Output Current | 3 A per channel (Ch. 1 & Ch. 2), 3 A (Ch. 3) |
| Maximum Output Power | 188 W total |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Display | 4.3-inch TFT color display |
| Interfaces | USB (device & host), LAN (LXI), GPIB (optional) |
| Arbitrary Waveform Function | Yes, built-in arbitrary waveform generator for voltage and current |
| Input Voltage | 100–240 V AC, 50/60 Hz |
Rohde & Schwarz HMC8043-G Power Supply Options:
- HMC8043-G - HZC95 - 19" rackmount kit for HMC series, 2 HE
- HMC8043-G - HZC40 - Female connector with ejectors, 8x2-pole
- HMC8043-G - HZ72 - IEEE-488 (GPIB) bus interface cable
- HMC8043-G - HZ10S - Silicon test lead, black
- HMC8043-G - HZ10R - Silicon test lead, red
- HMC8043-G - HZ10B - Silicon test lead, blue
| Model | HMC8043-G |
|---|

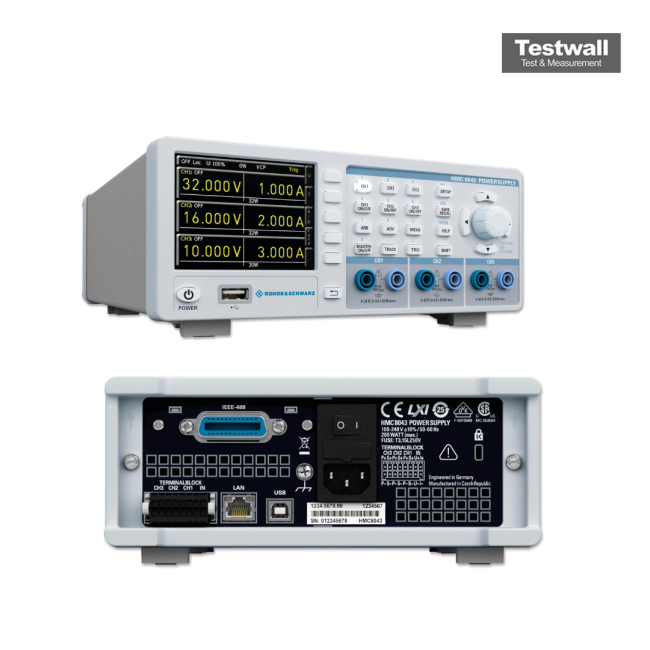

The Rohde & Schwarz HMC8043-G is a 3-channel power supply with galvanically isolated, floating outputs protected against overload and short circuits. It supports parallel or serial connections for increased voltage or current, features low ripple from linear post regulation, and offers real-time voltage, current, and power readouts on a high-resolution QVGA display.
With advanced functions like EasyArb, EasyRamp, analog input for voltage control, SCPI-based remote control, USB/LAN/GPIB interfaces, and individual channel fuses, this unit is perfect for developers and labs.
Testwall can supply the used Rohde & Schwarz HMC8043-G Power Supply, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz HMC8043-G Power Supply.
