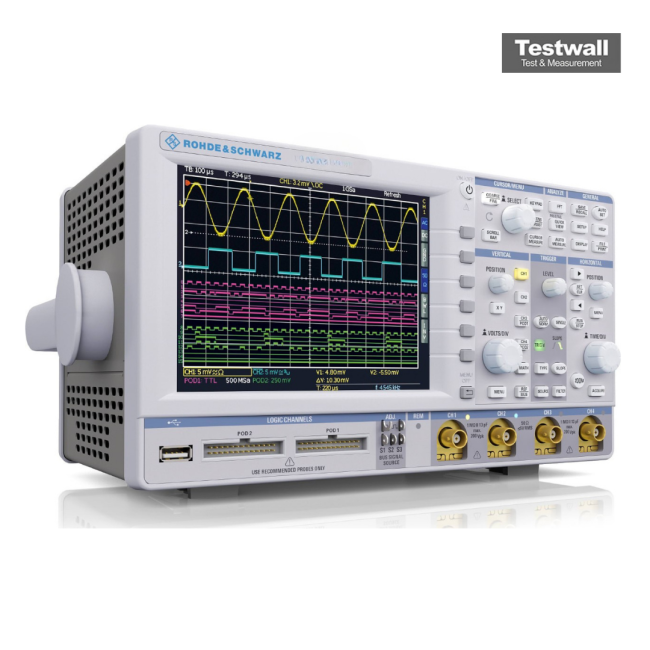

Rohde & Schwarz HMO3034 Mixed Signal Oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Analog Channels | 4 |
| Digital Channels (MSO) | 16 (via logic probe) |
| Sample Rate | 2 GSa/s (single channel), 1 GSa/s (all channels) |
| Memory Depth | 2 Mpts per channel (standard), up to 4 Mpts with option |
| Vertical Resolution | 8-bit (up to 12-bit with HiRes mode) |
| Display | 6.9-inch VGA color LCD (800 x 480 pixels) |
| Waveform Update Rate | Up to 1,000,000 waveforms/second |
| Input Impedance | 1 MΩ ∥ 16 pF |
| Connectivity / Interfaces | USB (host and device), Ethernet (LAN), VGA output |
Rohde & Schwarz HMO3034 Mixed Signal Oscilloscope Options:
- HMO3034 - HOO354 - Bandwidth upgrade from 300MHz to 500MHz (4 channel)
- HMO3034 - HOO10 - Analysis of I²C, SPI and UART/RS-232 signals on analog and logic channels
- HMO3034 - HOO11 - Analysis of I²C, SPI and UART/RS-232 signals on all analog channels
- HMO3034 - HOO12 - Analysis of CAN and LIN signals on analog and logic channels
- HMO3034 - HO3508 - Active 8 channel logic probe
- HMO3034 - HO3516 - 2 x HO3508, active 8 channel logic probes
- HMO3034 - HO720 - USB-device/RS-232 dual-interface card
- HMO3034 - HO740 - IEEE-488 (GPIB) interface card, galvanically isolated
- HMO3034 - HZ355 - 500MHz passive probe 10:1 with automatic identification
- HMO3034 - HZ355DU - Upgrade from 2 x HZ350 to 2 x HZ355 (only available when purchasing a HMO3000 300MHz/400MHz model)
| Model | HMO3034 |
|---|
The Rohde & Schwarz HMO3034 Mixed Signal Oscilloscope features 300MHz bandwidth, 4 analog channels, and supports up to 16 logic channels. It provides a real-time sampling rate of 4 GSa/s, with an 8 MPts memory that allows zooming up to 200,000:1. The vertical sensitivity ranges from 1mV/div to 5V/div, and it includes a 6.5" VGA TFT display with DVI, Ethernet, and USB connectivity.
Advanced triggering modes include slope, pulse width, logic, video, and serial buses. It supports hardware-accelerated decode and list view for I2C, SPI, UART/RS-232, CAN, and LIN. A logic probe (HO3508/HO3516) is required for MSO functionality.
Testwall can supply the used Rohde & Schwarz HMO3034 Mixed Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz HMO3034 Mixed Signal Oscilloscope.
