Rohde & Schwarz NGP824
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Output Voltage Range | 0 V to 20 V (CH1, CH2, CH3); 0 V to 5 V (CH4) |
| Output Current Range | 0 A to 8 A (CH1, CH2, CH3); 0 A to 5 A (CH4) |
| Maximum Output Power | 384 W total |
| Voltage Setting Resolution | 1 mV |
| Current Setting Resolution | 1 mA |
| Display | 4.3-inch color TFT touchscreen display |
| Interfaces | USB, LAN (Ethernet), GPIB (optional) |
| Overvoltage and Overcurrent Protection | Adjustable OVP and OCP on all channels |
| Line Voltage | 100 V to 240 V AC, 50/60 Hz |
| Model | NGP824 |
|---|

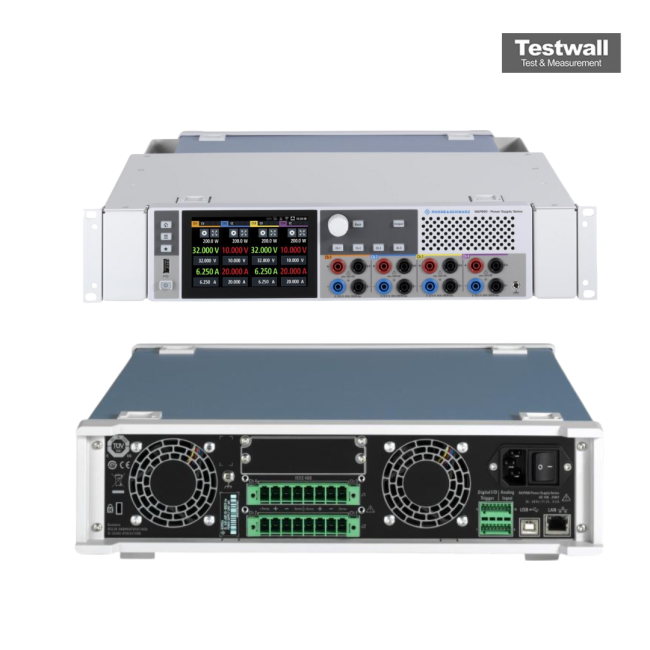

The Rohde & Schwarz NGP824 is a 4-channel DC power supply, offering output up to 64V and 10A per channel. With a total power output of 800W, each channel operates independently or in parallel/series mode. The unit features advanced programming capabilities, remote sensing, and USB/LAN interfaces, enabling reliable integration into automated test environments and laboratories.
Ideal for electronics testing, automotive applications, and educational labs, the NGP824 provides versatile voltage and current outputs with comprehensive protection functions including overvoltage, overcurrent, and overpower safety.
Testwall can supply the used Rohde & Schwarz NGP824, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NGP824.
