Rohde & Schwarz

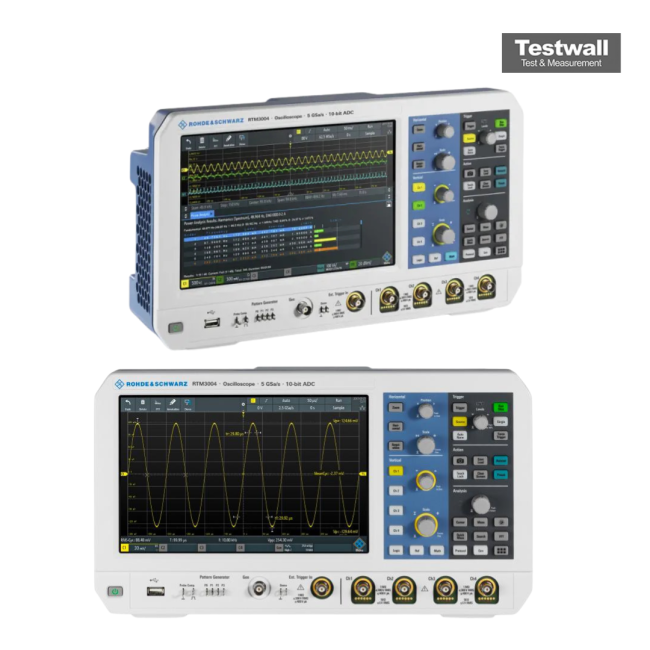

Rohde & Schwarz RTM3004
upto 1GHz 4 Channel 5GS/s Digital Scope
4 Number of Channels
1 GHz Bandwidth
5 Gsample/s Sample Rate
200 Mpoints (maximum, with memory option) Memory Depth
10-bit (up to 16-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 1 GHz |
| Sample Rate | 5 Gsample/s |
| Memory Depth | 200 Mpoints (maximum, with memory option) |
| Vertical Resolution | 10-bit (up to 16-bit with high resolution mode) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Logic Channels | 16 digital channels (MSO option) |
| Input Impedance | 1 MΩ / 50 Ω |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (Ethernet), HDMI |
Rohde & Schwarz RTM3004 upto 1GHz 4 Channel 5GS/s Digital Scope Options:
- RTM3004 - B1 - Mixed Signal Upgrade For Non-Mso Models, 400 MHZ
- RTM3004 - B2210 - Rtm3002 Oscilloscopes To 1GHZ Bandwidth
- RTM3004 - B222 - Rtm3002 Oscilloscopes To 200 MHZ Bandwidth
- RTM3004 - B223 - Rtm3002 Oscilloscopes To 350 MHZ Bandwidth
- RTM3004 - B225 - Rtm3002 Oscilloscopes To 500 MHZ Bandwidth
- RTM3004 - B2410 - Rtm3004 Oscilloscopes To 1GHZ Bandwidth
- RTM3004 - B242 - Rtm3004 Oscilloscopes To 200 MHZ Bandwidth
- RTM3004 - B243 - Rtm3004 Oscilloscopes To 350 MHZ Bandwidth
- RTM3004 - B245 - Rtm3004 Oscilloscopes To 500 MHZ Bandwidth
- RTM3004 - B6 - Arbitrary Waveform And 4-Bit Pattern Generator
- RTM3004 - K1 - I C/Spi Serial Triggering And Decoding
- RTM3004 - K15 - History And Segmented Memory
- RTM3004 - K18 - Spectrum Analysis And Spectrogram
- RTM3004 - K2 - Uart/Rs-232 Serial Triggering And Decoding
- RTM3004 - K3 - Can/Lin Serial Triggering And Decoding
- RTM3004 - K31 - Power Analysis
- RTM3004 - K36 - Bode Plot Analysis
- RTM3004 - K5 - Audio (I2S, Lj, Rj, Tdm) Triggering And Decoding
- RTM3004 - K6 - Mil-Std-1553 Serial Triggering And Decoding
- RTM3004 - K7 - Arinc 429 Serial Triggering And Decoding
- RTM3004 - PK1 - Application Bundle, Consists Of: K1/K2/K3/K5/K6/K7/K15/K18/K31/B6
| Model | RTM3004 |
|---|
The Rohde & Schwarz RTM3004 is a 4-channel digital oscilloscope offering up to 1GHz bandwidth and 5GS/s sampling rate per channel, designed for detailed signal analysis and fast measurements
Ideal for debugging and signal integrity validation, it supports deep memory, precise triggering, and powerful analysis features for complex embedded systems
Testwall can supply the used Rohde & Schwarz RTM3004, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTM3004
