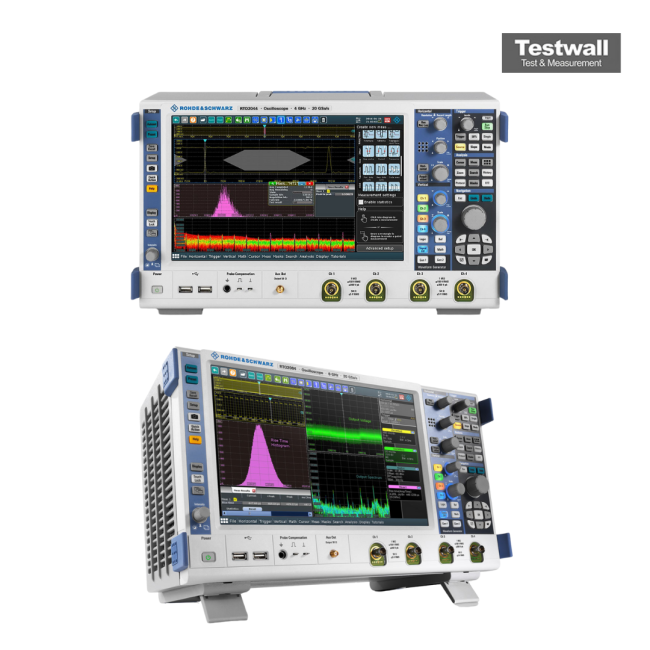

Rohde & Schwarz RTO2044, Digital oscilloscope
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 Gsample/s (single channel), 10 Gsample/s (all channels) |
| Memory Depth | 400 Msamples (standard), up to 800 Msamples (optional) |
| Vertical Resolution | 8 bits (up to 16 bits with High Definition mode) |
| Rise Time | 116 ps |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Acquisition Rate | Up to 1,000,000 waveforms/second |
| Interface/Connectivity | USB, LAN (Ethernet), HDMI, optional GPIB |
Rohde & Schwarz RTO2044, Digital oscilloscope Options:
- RTO2044 - B1 - Mixed Signal Option, 400 MHz (additional 16 logic channels)
- RTO2044 - B4 - OCXO 10 MHz (precision reference frequency with reference input and output connectors)
- RTO2044 - B6 - Arbitrary Waveform Generator, 100 MHz, 2 analog channels, 8-bit pattern generator
- RTO2044 - B10 - GPIB Interface
- RTO2044 - B19 - Additional Solid State Disk
- RTO2044 - B101 - Memory Upgrade, 100 Msample per channel
- RTO2044 - B102 - Memory Upgrade, 200 Msample per channel
- RTO2044 - B104 - Memory Upgrade, 400 Msample per channel
- RTO2044 - B110 - Memory Upgrade, 1 Gsample per channel
- RTO2044 - B246 - Upgrade of the R&S RTO2044 to 6 GHz bandwidth
- RTO2044 - K1 - I2C/SPI Serial Decoding
- RTO2044 - K2 - UART/RS-232/RS-422/RS-485 Serial Decoding
- RTO2044 - K3 - CAN/LIN Serial Triggering and Decoding
- RTO2044 - K4 - FlexRay Serial Triggering and Decoding
- RTO2044 - K5 - I2S Serial Triggering and Decoding
- RTO2044 - K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTO2044 - K7 - ARINC 429 Serial Triggering and Decoding
- RTO2044 - K8 - Ethernet Serial Decoding
- RTO2044 - K9 - CAN-FD Serial Triggering and Decoding
- RTO2044 - K10 - SENT Serial Triggering and Decoding
- RTO2044 - K11 - I/Q Software Interface
- RTO2044 - K12 - Jitter Analysis
- RTO2044 - K13 - Clock Data Recovery
- RTO2044 - K17 - High Definition Mode
- RTO2044 - K18 - Spectrum Analysis
- RTO2044 - K19 - Zone Trigger
- RTO2044 - K21 - USB 2.0 Compliance Test
- RTO2044 - K22 - Ethernet Compliance Test (10/100/1000BASE-T)
- RTO2044 - K23 - Ethernet Compliance Test (10GBASE-T)
- RTO2044 - K24 - BroadR-Reach Compliance Test (100BASE-T1)
- RTO2044 - K25 - Ethernet Compliance Test (2.5G/5G-BASE-T)
- RTO2044 - K26 - MIPI D-PHY Compliance Test
- RTO2044 - K31 - Power Analysis
- RTO2044 - K40 - MIPI RFFE Serial Triggering and Decoding
- RTO2044 - K42 - MIPI D-PHY Serial Triggering and Decoding
- RTO2044 - K44 - MIPI M-PHY Serial Triggering and Decoding
- RTO2044 - K50 - Manchester and NRZ Serial Triggering and Decoding
- RTO2044 - K52 - 8b10b Serial Decoding
- RTO2044 - K55 - MDIO Serial Triggering and Decoding
- RTO2044 - K60 - USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
- RTO2044 - K61 - USB 3.1 Gen 1 Serial Triggering and Decoding
- RTO2044 - K63 - USB Power Delivery Serial Triggering and Decoding
- RTO2044 - K65 - SpaceWire Serial Triggering and Decoding
- RTO2044 - K72 - PCI Express 1.1/2.0 Serial Triggering and Decoding
- RTO2044 - K76 - CXPI Serial Triggering and Decoding
- RTO2044 - K81 - PCI Express 1.1/2.0 Compliance Test
- RTO2044 - K86 - Energy-Efficient Ethernet Compliance Test (10M/100M/1G-BASE-T)
- RTO2044 - K87 - 1000BASE-T1 Compliance Test
- RTO2044 - K92 - eMMC Compliance Test
| Model | RTO2044 |
|---|
The Rohde & Schwarz RTO2044 Digital Oscilloscope features 4 channels with a 4GHz bandwidth and a 20 GSa/s sampling rate, enabling precise signal analysis with up to 2 Gsample memory depth. It offers a vertical resolution of up to 16 bits and very low noise levels for high accuracy. This unit comes equipped with four 500MHz passive voltage probes and includes catalog number 1329.7002.44. Optional MSO 16 digital channels can be added using the RTO-B1 module.
Designed for professionals, the RTO2044 is ideal for capturing fast signal transitions and complex debug scenarios, especially when combined with its large memory and multi-channel capability.
Testwall can supply the used Rohde & Schwarz RTO2044 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTO2044 Digital Oscilloscope.
