Rohde & Schwarz RTO2064 Digital oscilloscope, 4 channels, 6GHz bandwidth (2 channels), 4GHz (4 channels), sampling rate 20GSa/s per channel, sampling memory 50MSa per chann
Digital oscilloscope,? 4 channels, 6GHz bandwidth (2 channels), 4GHz (4 channels), sampling rate 20GSa/s per channel,? sampling memory 50MSa per chann
6 GHz (2 channels), 4 GHz (4 channels) Bandwidth
4 Number of Channels
20 GSa/s per channel Sampling Rate
50 MSa per channel Acquisition Memory
8 bit (up to 16 bit with HD mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz (2 channels), 4 GHz (4 channels) |
| Number of Channels | 4 |
| Sampling Rate | 20 GSa/s per channel |
| Acquisition Memory | 50 MSa per channel |
| Vertical Resolution | 8 bit (up to 16 bit with HD mode) |
| Rise Time | 58.3 ps (6 GHz bandwidth mode) |
| Input Impedance | 50 Ω / 1 MΩ |
| Display | 12.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), HDMI, optional GPIB |
Rohde & Schwarz RTO2064 Digital oscilloscope, 4 channels, 6GHz bandwidth (2 channels), 4GHz (4 channels), sampling rate 20GSa/s per channel, sampling memory 50MSa per chann Options:
- RTO2064 - RTO-B1 - Mixed Signal Option, 400 MHz (additional 16 logic channels)
- RTO2064 - RTO-B4 - OCXO 10 MHz (precision reference frequency with reference input and output connectors)
- RTO2064 - RTO-B6 - Arbitrary Waveform Generator, 100 MHz, 2 analog channels, 8-bit pattern generator
- RTO2064 - RTO-B10 - GPIB Interface
- RTO2064 - RTO-B19 - Additional Solid State Disk
- RTO2064 - RTO-B101 - Memory Upgrade, 100 Msample per channel
- RTO2064 - RTO-B102 - Memory Upgrade, 200 Msample per channel
- RTO2064 - RTO-B104 - Memory Upgrade, 400 Msample per channel
- RTO2064 - RTO-B110 - Memory Upgrade, 1 Gsample per channel (for RTO2004/14/24/34/44)
- RTO2064 - RTO-K1 - I2C/SPI Serial Decoding
- RTO2064 - RTO-K2 - UART/RS-232/RS-422/RS-485 Serial Decoding
- RTO2064 - RTO-K3 - CAN/LIN Serial Triggering and Decoding
- RTO2064 - RTO-K4 - FlexRay Serial Triggering and Decoding
- RTO2064 - RTO-K5 - I2S Serial Triggering and Decoding
- RTO2064 - RTO-K6 - MIL-STD-1553 Serial Triggering and Decoding
- RTO2064 - RTO-K7 - ARINC 429 Serial Triggering and Decoding
- RTO2064 - RTO-K8 - Ethernet Serial Decoding
- RTO2064 - RTO-K9 - CAN-FD Serial Triggering and Decoding
- RTO2064 - RTO-K10 - SENT Serial Triggering and Decoding
- RTO2064 - RTO-K11 - I/Q Software Interface
- RTO2064 - RTO-K12 - Jitter Analysis
- RTO2064 - RTO-K13 - Clock Data Recovery (CDR)
- RTO2064 - RTO-K17 - High Definition Mode
- RTO2064 - RTO-K18 - Spectrum Analysis
- RTO2064 - RTO-K19 - Zone Trigger
- RTO2064 - RTO-K22 - Ethernet Compliance Test (10/100/1000BASE-T)
- RTO2064 - RTO-K31 - Power Analysis
- RTO2064 - RTO-K40 - MIPI RFFE Serial Triggering and Decoding
- RTO2064 - RTO-K42 - MIPI D-PHY Serial Triggering and Decoding
- RTO2064 - RTO-K44 - MIPI M-PHY Serial Triggering and Decoding
- RTO2064 - RTO-K50 - Manchester and NRZ Serial Triggering and Decoding
- RTO2064 - RTO-K52 - 8b10b Serial Decoding
- RTO2064 - RTO-K55 - MDIO Serial Triggering and Decoding
- RTO2064 - RTO-K60 - USB 1.0/1.1/2.0/HSIC Serial Triggering and Decoding
- RTO2064 - RTO-K61 - USB 3.1 Gen 1 Serial Triggering and Decoding
- RTO2064 - RTO-K63 - USB Power Delivery Serial Triggering and Decoding
- RTO2064 - RTO-K65 - SpaceWire Serial Triggering and Decoding
- RTO2064 - RTO-K72 - PCI Express 1.1/2.0 Serial Triggering and Decoding
- RTO2064 - RTO-K76 - CXPI Serial Triggering and Decoding
- RTO2064 - RTO-K81 - PCI Express 1.1/2.0 Compliance Test
- RTO2064 - RTO-K86 - Energy-Efficient Ethernet Compliance Test (10M/100M/1G-BASE-T)
- RTO2064 - RTO-K87 - 1000BASE-T1 Compliance Test
- RTO2064 - RTO-K92 - eMMC Compliance Test
- RTO2064 - RTO-B246 - Bandwidth Upgrade from RTO2044 to 6 GHz bandwidth
| Model | RTO2064 |
|---|

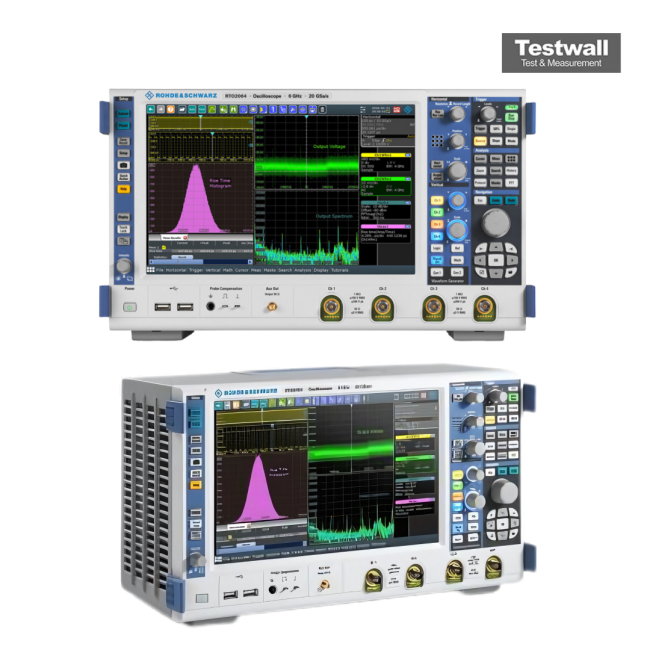

The Rohde & Schwarz RTO2064 Digital Oscilloscope delivers up to 6 GHz bandwidth across 4 analog channels with a 20 GSa/s sampling rate. It includes a deep 2 Gpts memory, high-resolution display, and 10.4" touchscreen for intuitive control. Signal integrity is ensured by low noise design and high vertical resolution up to 16 bits in HD mode.
Ideal for protocol analysis, real-time spectrum analysis, and mixed-signal debugging, the RTO2064 offers advanced triggering, SmartGrid UI, and multi-domain analysis, all in a compact 9 kg form factor.
Testwall can supply the used Rohde & Schwarz RTO2064 Digital Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RTO2064 Digital Oscilloscope.
