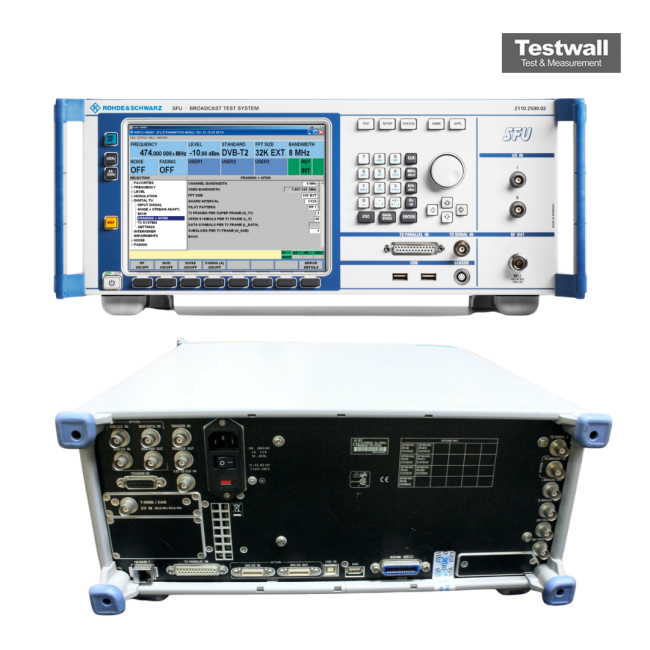

Rohde & Schwarz SFU Broadcast Test System
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| RF Output Level Range | -130 dBm to +13 dBm |
| Supported Standards | DVB-T, DVB-T2, DVB-C, DVB-C2, DVB-S, DVB-S2, ATSC, ISDB-T, ISDB-S, DTMB |
| Modulation Bandwidth | Up to 8 MHz |
| Transport Stream Interface | ASI and SMPTE 310M input/output |
| Fading Simulation | Built-in fading simulator with real-time channel simulation (AWGN, multipath, mobile fading profiles) |
| Phase Noise | < -105 dBc/Hz at 1 kHz carrier offset (typical) |
| Spurious Emissions | < -70 dBc (non-harmonics) |
| Power Supply | AC 100 V to 240 V, 50 Hz to 60 Hz |
| Dimensions (W x H x D) | 426 mm x 177 mm x 460 mm (4U rack-mountable) |
| Model | SFU |
|---|
The Rohde & Schwarz SFU is a multistandard TV generator designed for DVB-T/H, supporting a frequency range of 100 kHz to 3 GHz and output levels up to +19 dBm. It includes a high-performance I/Q modulator with 180 MHz bandwidth, and features such as BER testing, optional analog signal generation, a fading simulator, arbitrary waveform and noise generation, plus a TS recorder and player.
Ideal for versatile broadcasting tests, it supports a wide range of signal scenarios and advanced modulation schemes in both analog and digital domains.
Testwall can supply the used Rohde & Schwarz SFU Broadcast Test System, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SFU Broadcast Test System.
