Rohde & Schwarz SME02
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.5 GHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| SSB Phase Noise | -130 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation, I/Q Modulation |
| Output Impedance | 50 Ohm |
| Harmonics | Less than -30 dBc |
| Level Accuracy | ±1 dB |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
| Operating Temperature Range | 0°C to +55°C |
Rohde & Schwarz SME02 Options:
- SME02 - SM-B1 - Reference Oscillator OCXO: aging <1 x 10⁻⁹/day
- SME02 - SM-B2 - LF Generator: supplies sinewave, noise 0.1 Hz to 500 kHz, triangular, squarewave 0.1 Hz to 50 kHz signals
- SME02 - SM-B3 - Pulse Modulator: on/off ratio >80 dB, rise/fall time <10 ns
- SME02 - SM-B4 - Pulse Generator: only in conjunction with SM-B3/SM-B8/SM-B9; provides single, delayed and double pulses
- SME02 - SM-B5 - FM/φM Modulator: FM DC to 2 MHz, φM DC to 100 kHz
- SME02 - SM-B6 - Multifunction Generator: produces stereo multiplex and VOR/ILS signals, as well as sinewave, noise 0.1 Hz to 1 MHz, triangular, sawtooth, squarewave 0.1 Hz to 50 kHz signals
- SME02 - SME-B11 - DM Coder: generates FSK, FFSK, 4FSK, GFSK, GMSK, QPSK, π/4 QPSK, π/4 DQPSK, O-QPSK; user-programmable data sequences and PRBS
- SME02 - SME-B12 - DM Memory Extension 8 Mbit: expands the 8-kbit memory of the DM Coder to 8 Mbit (data only); required for fitting SME-B41 and SME-B42
- SME02 - SME-B41 - FLEX Protocol: generates call signals to FLEX standard for testing pagers
- SME02 - SME-B42 - POCSAG Protocol: generates call signals to POCSAG standard for testing pagers
- SME02 - SMT-B19 - Rear Connectors for RF and LF: to replace front-panel connectors
| Model | SME02 |
|---|

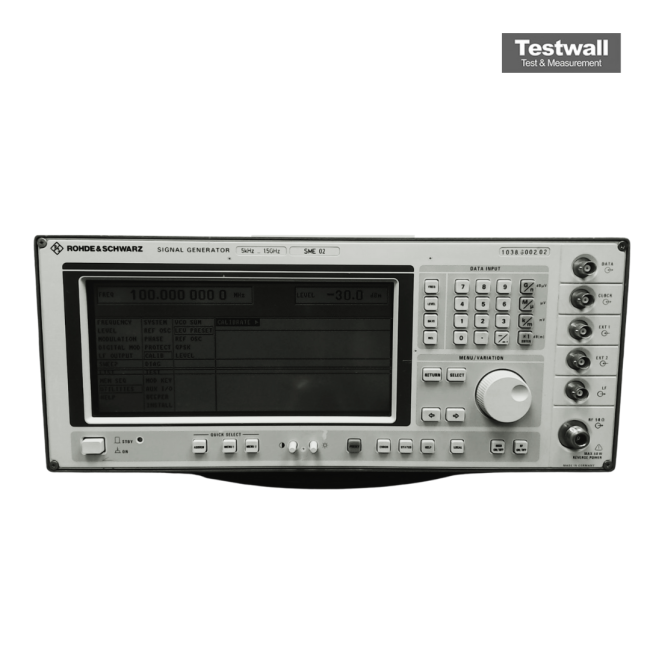

The Rohde & Schwarz SME02 Signal Generator covers a frequency range from 5 kHz to 1.5 GHz, providing high-quality analog and digital signal generation. Designed for both analog and digital mobile radio receiver testing, it supports standard modulation types, data formats, TDMA structures, and frequency hopping. This model ensures reliable signal reproduction essential for complex digital systems.
The SME02 is adaptable through various optional modules, allowing customization for specific testing needs. It's an economical choice, sharing core capabilities with the SME03 and SME06, differing only in frequency range.
Testwall can supply the used Rohde & Schwarz SME02 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SME02 Signal Generator.
