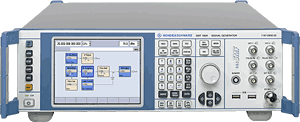

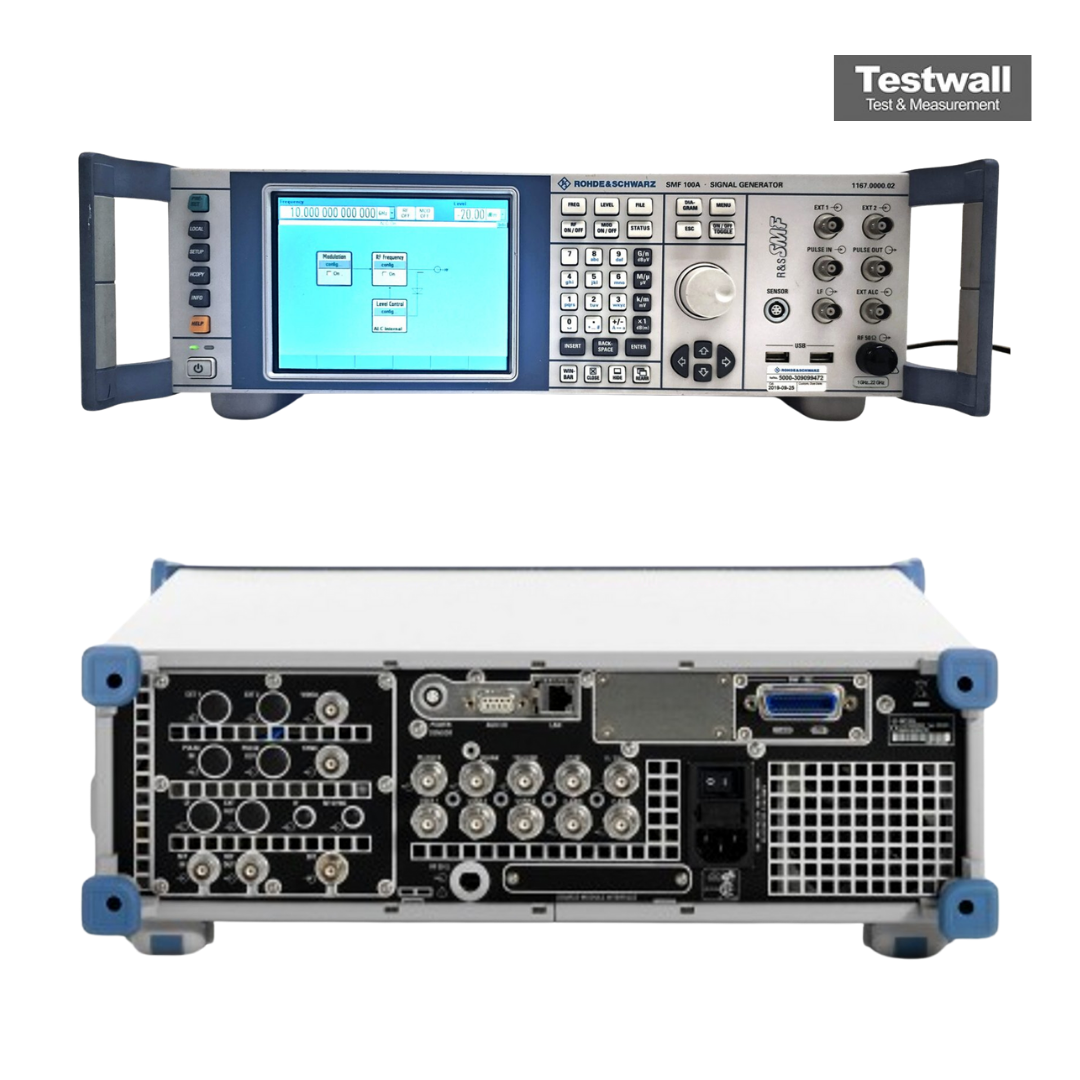

Rohde & Schwarz SMF100A-B144
43.5 GHz Analog Signal Generator, 2.92 mm(f)
AM, FM, ΦM, pulse Modulation
0.001 Hz Frequency Resolution
< 4 ms (2 ms typ.) Switching Speed
GPIB, LAN, USB Interfaces
427 × 132 × 550 mm Dimensions
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Frequency Resolution | 0.001 Hz |
| Switching Speed | < 4 ms (2 ms typ.) |
| Interfaces | GPIB, LAN, USB |
| Dimensions | 427 × 132 × 550 mm |
| Frequency Range | 1 GHz to 43.5 GHz (100 kHz with Opt. B2) (Opt. B144) |
| Output Power | -20 to +16 dBm (-130 dBm with Opt. B26/B27; +25 dBm with Opt. B32); +8 dBm (typ.) at 40 to 43.5 GHz |
| SSB Phase Noise | < -115 dBc/Hz at 10 GHz, 20 kHz offset |
| Level Accuracy | < 0.6 dB (to 2 GHz), < 0.8 dB (2 to 22 GHz), < 1.0 dB (22 to 40 GHz) |
| Harmonics | < -50 dBc (-55 dBc typ.), 1 to 22 GHz |
| Non-Harmonics | < -62 dBc (3 to 11 GHz), < -56 dBc (11 to 21 GHz) |
| Sweep Modes | step sweep, ramp sweep (Opt. K4), power sweep, list mode |
| Timebase Aging | 10 MHz, < 1 × 10⁻⁶ per year (< 3 × 10⁻⁸ with Opt. B1/B22) |
| Weight | 18 kg |
Rohde & Schwarz SMF100A-B122 Options:
- SMF100A-B122 - SMF-B1 - OCXO Reference Oscillator
- SMF100A-B122 - SMF-B20 - AM/FM/φM/LOG AM
- SMF100A-B122 - SMF-B26 - Step Attenuator 22 GHz
- SMF100A-B122 - SMF-B31 - High Output Power
- SMF100A-B122 - SMF-B83 - Removable GPIB
- SMF100A-B122 - SMF-B84 - Removable USB
- SMF100A-B122 - SMF-B85 - Removable Flash Disk
- SMF100A-B122 - SMF-K3 - Narrow Pulse Modulation
- SMF100A-B122 - SMF-K23 - Pulse Generator
The Rohde & Schwarz SMF100A with SMF-B144 option is a high-performance microwave signal generator offering a frequency range from 1,000 MHz to 43.5 GHz, 3 channels, and benchtop form factor, engineered for exceptional signal quality and flexibility.
Ideal for R&D, production, and maintenance, this generator provides rapid signal output and unmatched spectral purity in microwave applications.
Testwall can supply the used Rohde & Schwarz SMF100A-B144, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMF100A-B144.
