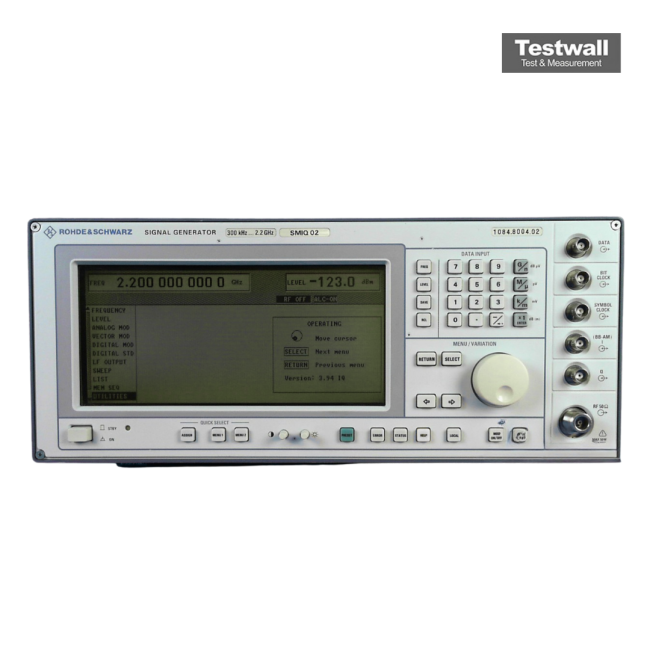

Rohde & Schwarz SMIQ02
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 2.2 GHz |
| Output Power | -140 to +13 dBm (PEP) |
| Modulation | AM, FM, ΦM, I/Q |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc (level ≤ 10 dBm) |
| SSB Phase Noise | < -126 dBc/Hz at 1 GHz, 20 kHz offset |
| Level Accuracy | < ±1 dB (< 2 GHz), < ±1.5 dB (> 2 GHz) |
| Modulation Bandwidth | 30 MHz (I/Q, -3 dB) |
| Timebase Aging | 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day |
| Interfaces | GPIB |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
Rohde & Schwarz SMIQ02 Options:
- SMIQ02 - SM-B1 - Reference Oscillator OCXO
- SMIQ02 - SM-B5 - FM/φM Modulator
- SMIQ02 - SMIQB10 - Modulation Coder
- SMIQ02 - SMIQB11 - Data Generator (incl. 4 Mbit memory)
- SMIQ02 - SMIQB12 - Memory Extension 8 Mbit
- SMIQ02 - SMIQB14 - Fading Simulator (6 paths)
- SMIQ02 - SMIQB15 - Fading Simulator (with 6 additional paths)
- SMIQ02 - SMIQB42 - IS-95 CDMA (Digital Standard)
- SMIQ02 - SM-B50 - Fast CPU
- SMIQ02 - SMIQB19 - Rear Connectors
The Rohde & Schwarz SMIQ02 Vector Signal Generator operates within a frequency range of 300 kHz to 2.2 GHz, delivering high-precision signal generation for complex modulation formats. It supports a wide range of vector and analog modulation schemes, making it ideal for both development and testing of radio communications systems. With low phase noise, high output level, and exceptional modulation bandwidth, it ensures accuracy and reliability in signal reproduction.
This model is highly suitable for applications in mobile communications, aerospace, and defense sectors. Its intuitive interface and versatile signal capabilities make it a valuable asset in R&D and production environments.
Testwall can supply the used Rohde & Schwarz SMIQ02, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMIQ02.
Options and configurations
- Timebase Aging: 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁹ per day (Opt. B1)
