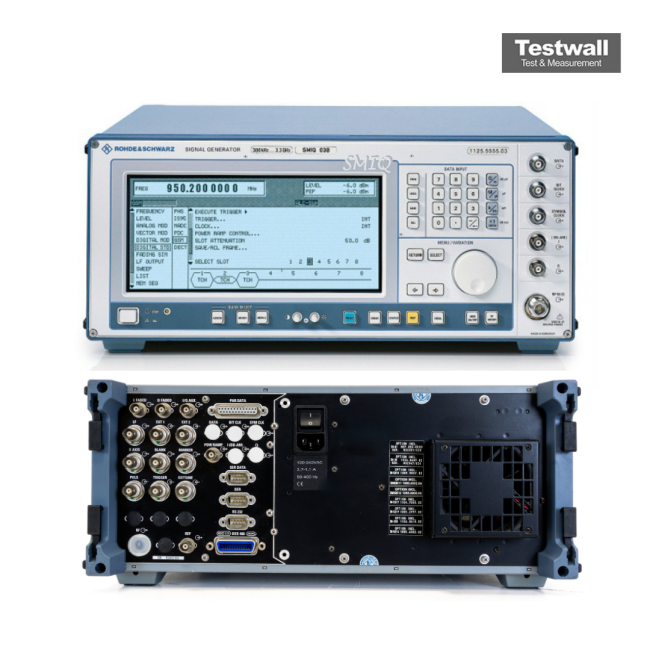

Rohde & Schwarz SMIQ03A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3.3 GHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| SSB Phase Noise | -116 dBc/Hz at 1 GHz, 20 kHz offset |
| Modulation Types | AM, FM, PM, Pulse, I/Q, Digital Modulation (QPSK, QAM, FSK) |
| Vector Signal Generation | Internal baseband generator with arbitrary waveform capability |
| RF Connector | N-type female, 50 Ohm |
| Reference Frequency | 10 MHz internal/external reference |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Interface/Connectivity | GPIB (IEEE 488), RS-232, and optional LAN/USB |
| Model | SMIQ03A |
|---|
The R&S SMIQ03A is a high-performance vector signal generator covering 300 kHz to 3.3 GHz, supporting analog and digital modulations including AM, FM, PM, Pulse, and I/Q. It offers outstanding spectral purity at –126 dBc/Hz, fast switching times under 3 ms, and a wide output range from –140 dBm to +13 dBm in 0.1 dB steps. With an internal baseband generator and external I/Q inputs, it ensures flexible signal creation.
Ideal for RF development, production, and approval testing, it enables frequency hopping down to 500 µs and modulation bandwidths up to 7 Msymbol/s. Remote control via GPIB or RS-232 enhances integration.
Testwall can supply the used Rohde & Schwarz SMIQ03A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMIQ03A.
